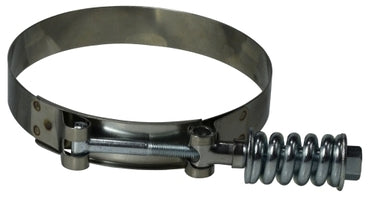

844225 by Midland | Spring Loaded T-Bolt Hose Clamp | 3/4" Width | Clamp Range: 2.25" to 2.56" | 300 Stainless Steel Band / Zinc Plated Carbon Steel T-Bolt
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
| Part Number | SAE # | Clamp Range Min-Max |
Weight (Lbs.) |
|---|---|---|---|
| 844213 (844-213) |
40 | 2.13" - 2.44" | 0.170 |
| 844225 (844-225) |
44 | 2.25" - 2.56" | 0.174 |
| 844238 (844-238) |
48 | 2.38" - 2.69" | 0.179 |
| 844250 (844-250) |
52 | 2.50" - 2.81" | 0.181 |
| 844263 (844-263) |
56 | 2.63" - 2.94" | 0.183 |
| 844275 (844-275) |
60 | 2.75" - 3.06" | 0.185 |
| 844300 (844-300) |
68 | 3" - 3.31" | 0.187 |
| 844306 (844-306) |
70 | 3.06" - 3.38" | 0.190 |
| 844313 (844-313) |
72 | 3.13" - 3.44" | 0.192 |
| 844325 (844-325) |
76 | 3.25" - 3.56" | 0.194 |
| 844338 (844-338) |
80 | 3.38" - 3.69" | 0.196 |
| 844350 (844-350) |
84 | 3.50" - 3.81" | 0.196 |
| 844356 (844-356) |
86 | 3.56" - 3.88" | 0.196 |
| 844363 (844-363) |
88 | 3.63" - 3.94" | 0.198 |
| 844375 (844-375) |
92 | 3.75" - 4.06" | 0.198 |
| 844406 (844-406) |
102 | 4.06" - 4.38" | 0.203 |
| 844413 (844-413) |
104 | 4.13" - 4.44" | 0.209 |
| 844425 (844-425) |
108 | 4.25" - 4.56" | 0.214 |
| 844456 (844-456) |
118 | 4.56" - 4.88" | 0.216 |
| 844500 (844-500) |
132 | 5" - 5.31" | 0.218 |
| 844525 (844-525) |
140 | 5.25" - 5.56" | 0.220 |
| 844600 (844-600) |
164 | 6" - 6.31" | 0.223 |
| 844625 (844-625) |
172 | 6.25" - 6.56" | 0.225 |
Additional Product Data:
Material(s):
Specifications and Approvals:
Clamp Width:
0.75"
Minimum Clamp I.D.:
2.25"
Maximum Clamp I.D.:
2.56"
