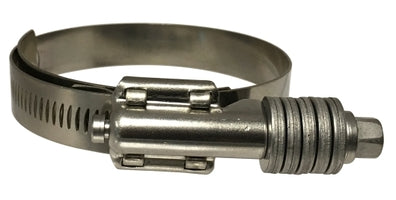

842024 by Midland | Constant Torque Hose Clamp | 9/16" Width | Clamp Range: 1-1/16" to 2" | 304 Stainless Steel Band / 410 Stainless Steel Hex Screw
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
| Part Number | Clamp Range | Band Width | Torque | Screw Size | Weight (Lbs.) |
|---|---|---|---|---|---|
| 842010 (842-010) |
9/16" - 1-1/16" | 9/16" | 72 in-lb | 5/16" | 0.106 |
| 842012 (842-012) |
11/16" - 1-1/4" | 9/16" | 72 in-lb | 5/16" | 0.108 |
| 842016 (842-016) |
13/16" - 1-1/2" | 9/16" | 72 in-lb | 5/16" | 0.112 |
| 842020 (842-020) |
13/16" - 1-3/4" | 9/16" | 72 in-lb | 5/16" | 0.119 |
| 842024 (842-024) |
1-1/16" - 2" | 9/16" | 72 in-lb | 5/16" | 0.121 |
| 842200 (842-200) |
1-1/4" - 2-1/8" | 5/8" | 130 in-lb High | 3/8" | 0.207 |
| 842250 (842-250) |
1-3/4" - 2-5/8" | 5/8" | 130 in-lb High | 3/8" | 0.216 |
| 842300 (842-300) |
2-1/4" - 3-1/8" | 5/8" | 130 in-lb High | 3/8" | 0.220 |
| 842350 (842-350) |
2-3/4" - 3-5/8" | 5/8" | 130 in-lb High | 3/8" | 0.225 |
| 842400 (842-400) |
3-1/4" - 4-1/8" | 5/8" | 130 in-lb High | 3/8" | 0.231 |
| 842450 (842-450) |
3-3/4" - 4-5/8" | 5/8" | 130 in-lb High | 3/8" | 0.238 |
| 842500 (842-500) |
4-1/4" - 5-1/8" | 5/8" | 130 in-lb High | 3/8" | 0.256 |
Additional Product Data:
Material(s):
Specifications and Approvals:
Clamp Width:
0.5625"
Minimum Clamp I.D.:
1.0625"
Maximum Clamp I.D.:
2"
