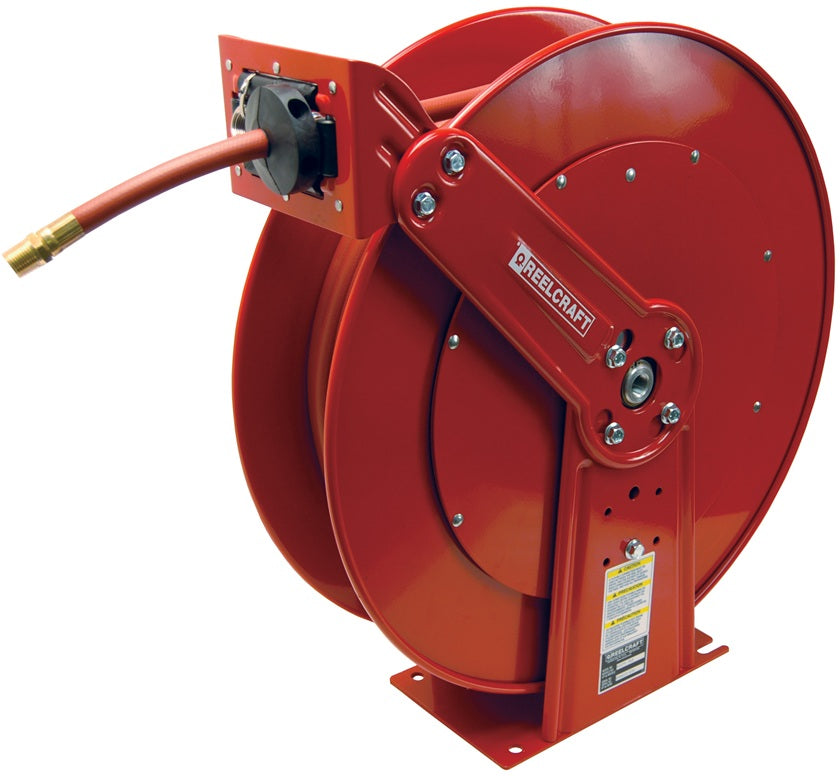

83050LP by Dixon Valve | Reelcraft® 80000 Series | Spring Driven Hose Reel - with Hose | 3/4" Hose ID | 50ft Hose Length | Steel

83050LP by Dixon Valve | Reelcraft® 80000 Series | Spring Driven Hose Reel - with Hose | 3/4" Hose ID | 50ft Hose Length | Steel

Sale price$1,489.02
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • Five-in-one heat-treated aluminum casting incorporates main shaft, ratchet, spring arbor, and inlet/outlet plumbing in one-piece casting.
  • Reels that come with hose, are furnished standard with PVC hose.
Features:
  • Reel inlet 3/4" NPTF.
Specifications:
  • Maximum temperature is 150°F (66°C) with hose.
  • Maximum temperature is 210°F (99°C) without hose.
Reel with Hose
Part Number Hose I.D. Hose Length Service Working
Pressure
PSI
@70°F
82075LP 1/2" 75ft Air / Water 300 PSI
82100LP 1/2" 100ft Air / Water 300 PSI
83050LP 3/4" 50ft Air / Water 250 PSI
Reel without Hose
Part Number Hose Capacity Service Working
Pressure
PSI
@70°F
83000LP 50ft of 3/4" or 100ft of 1/2" Air / Water 500 PSI

Additional Product Data:

Brand:
  • Reelcraft
Series:
  • 80000 Series
