82890-04 by AIGNEP | Functional (Flow Controls) Series | Two Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube
82890-04 by AIGNEP | Functional (Flow Controls) Series | Two Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube

82890-04 by AIGNEP | Functional (Flow Controls) Series | Two Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube

Sale price$55.61
Buy More, Save More!
Quantity Price Each
10–39 $52.27
40–79 $47.27
80+ $41.71
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male Swift-Fit
  • 1/4in NPT Female
  • 5/32in Push-to-Connect

Bi-Directional Block Valve

Pressure Rating: 4.35 - 145 PSI
Temperature Range: -4 ? F - 176 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

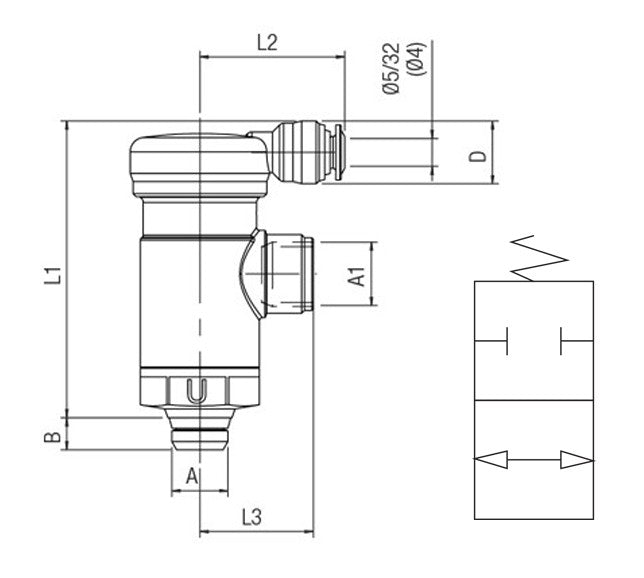

Product Number A A1 B D L1 L2 L3 CH
82890-02 1/8" 1/8" NPTF 5.5 mm 11 mm 50 mm 25 mm 18.5 mm 18 mm
82890-04 1/4" 1/4" NPTF 7 mm 11 mm 50.5 mm 25 mm 20.5 mm 18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
