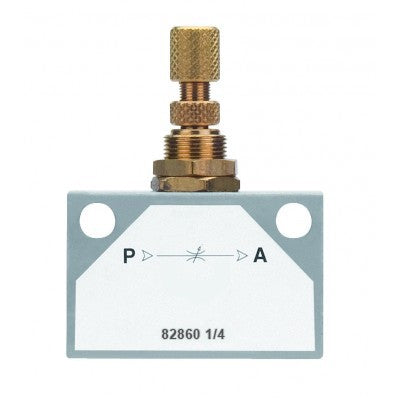

82860-04 by AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 1/4" Female NPTF
82860-04 by AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 1/4" Female NPTF

82860-04 by AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 1/4" Female NPTF

Sale price$18.75
Buy More, Save More!
Quantity Price Each
10–39 $17.63
40–79 $15.94
80+ $14.06
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Female NPTF
  • Some Ends Match

Inline Needle Valve Female - NPTF

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Anodized Aluminum
Thread Type: NPTF

Product Number Thread Type A B (IN) B C H D F L M CH
82860-02 NPTF 1/8" 1.378" 35 mm 22 mm 18 mm 25 mm 4.5 mm 26-36 mm M12 x 0.75 15 mm
82860-04 NPTF 1/4" 1.811" 46 mm 30 mm 20 mm 35 mm 6.5 mm 26-36 mm M12 x 0.75 15 mm
82860-06 NPTF 3/8" 1.968" 50 mm 30 mm 25 mm 35 mm 6.5 mm 32-42 mm M18 x 1.5 22 mm
82860-08 NPTF 1/2" 2.362" 60 mm 40 mm 25 mm 44 mm 6.5 mm 32-44 mm M18 x 1.5 22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
