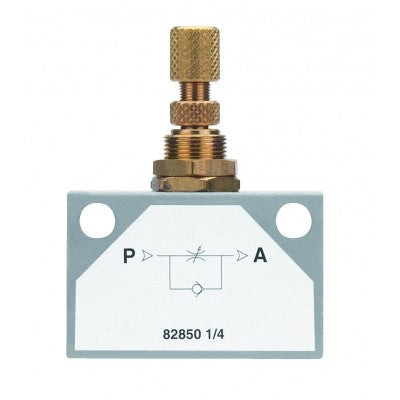

82850-06 by AIGNEP | Functional (Flow Controls) Series | Inline Flow Control Valve | 3/8" Female NPTF
82850-06 by AIGNEP | Functional (Flow Controls) Series | Inline Flow Control Valve | 3/8" Female NPTF

82850-06 by AIGNEP | Functional (Flow Controls) Series | Inline Flow Control Valve | 3/8" Female NPTF

Sale price$36.98
Buy More, Save More!
Quantity Price Each
10–39 $34.76
40–79 $31.43
80+ $27.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female NPTF
  • 3/8in Female NPTF
  • Some Ends Match

Inline Flow Control Female - NPTF

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Anodized Aluminum
Thread Type: NPTF

Product Number Thread Type A B (IN) B C D F H L M CH
82850-02 NPTF 1/8" 1.378" 35 mm 22 mm 25 mm 4.5 mm 18 mm 26-36 mm M12 x 0.75 15 mm
82850-04 NPTF 1/4" 1.811" 46 mm 30 mm 35 mm 6.5 mm 20 mm 26-36 mm M12 x 0.75 15 mm
82850-06 NPTF 3/8" 1.968" 50 mm 30 mm 35 mm 6.5 mm 25 mm 32-42 mm M18 x 1.5 22 mm
82850-08 NPTF 1/2" 2.362" 60 mm 40 mm 44 mm 6.5 mm 25 mm 32-44 mm M18 x 1.5 22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
