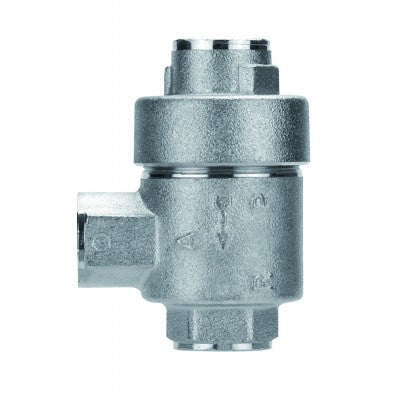

82650-12 by AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 3/4 Female NPTF
82650-12 by AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 3/4 Female NPTF

82650-12 by AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 3/4 Female NPTF

Sale price$27.41
Buy More, Save More!
Quantity Price Each
10–39 $25.77
40–79 $23.30
80+ $20.56
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

90 Degree

Ends Configuration:
  • 3/4in Female NPTF
  • 3/4in Female NPTF
  • Some Ends Match

Quick Exhaust Valve

Pressure Rating: 0-150 PSIG
Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

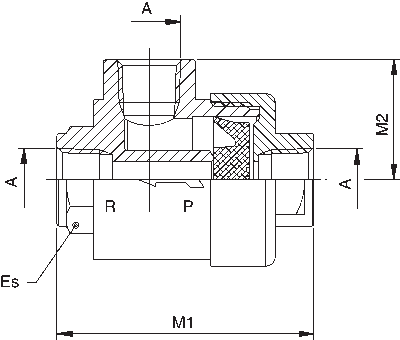

Product Number A NPTF Thread Type Es M1 M2
82650-02 1/8" NPTF 15 mm 42 mm 19.5 mm
82650-04 1/4" NPTF 19 mm 54 mm 25 mm
82650-06 3/8" NPTF 22 mm 60.5 mm 26.5 mm
82650-08 1/2" NPTF 26 mm 72 mm 32 mm
82650PL-12 3/4" NPTF 32 mm 88 mm 37 mm
82650-16 1" NPTF 46 mm 109 mm 48 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
