82320-08 by AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10
82320-08 by AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10

82320-08 by AIGNEP | Port Plug | 1/2" Male Swift-Fit Universal | Pack of 10

Sale price$31.01

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $29.15
40–79 $26.36
80+ $23.26
Discounts applied in cart/checkout.

Product Data:

Series:
  • Port Plug Series
Ends Configuration:
  • 1/2in Male Swift-Fit
Material(s):
  • Nickel-Plated Brass

Male Plug

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

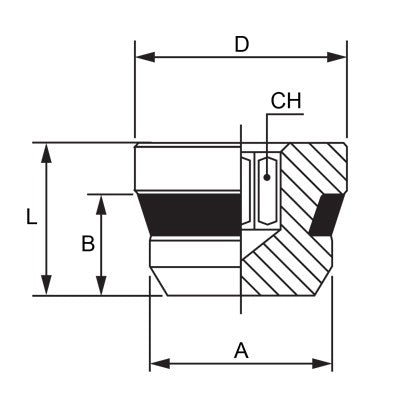

Product Number A B D L CH
82320-02 1/8" 5.5 mm 10 mm 8 mm 5 mm
82320-04 1/4" 7 mm 14 mm 10 mm 6 mm
82320-06 3/8" 7.5 mm 16.8 mm 11 mm 7 mm
82320-08 1/2" 9 mm 20 mm 13 mm 11 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
