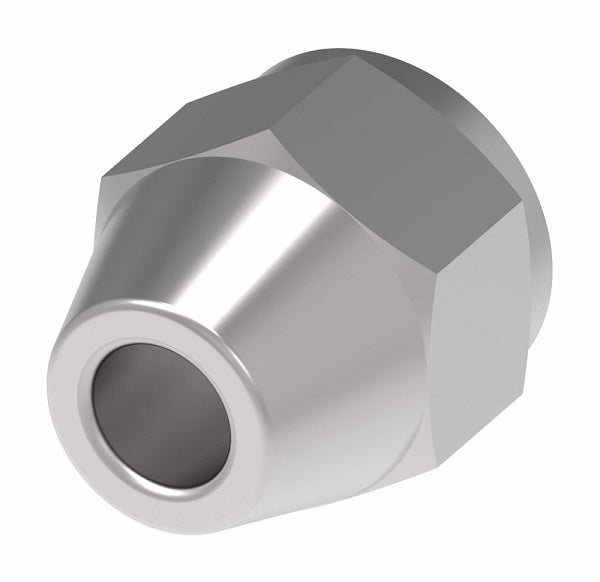

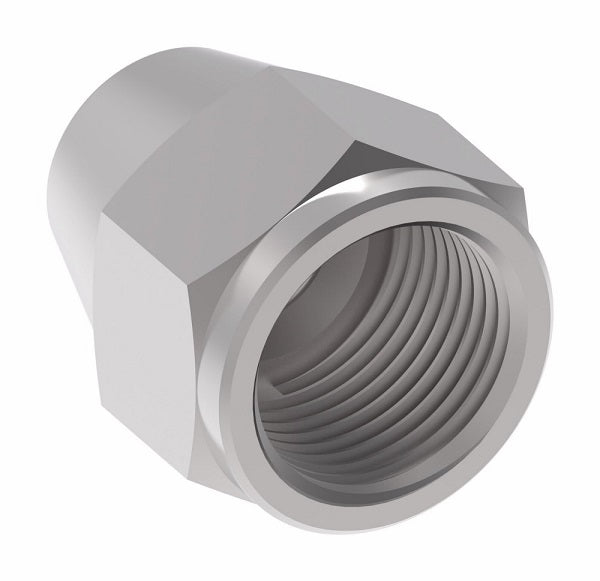

8112X4 Ermeto by Danfoss | 7000 Series | Diesel Nut | 1/4" Tube OD | Steel
8112X4 Ermeto by Danfoss | 7000 Series | Diesel Nut | 1/4" Tube OD | Steel
8112X4 Ermeto by Danfoss | 7000 Series | Diesel Nut | 1/4" Tube OD | Steel

8112X4 Ermeto by Danfoss | 7000 Series | Diesel Nut | 1/4" Tube OD | Steel

Minimum Order Quantity: 5 Units

Sale price$7.57
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Tube O.D. Thread Number Hex C L
8112X4 1/4" 9/16-18 3/4" 0.94"
8112X6 3/8" 3/4-16 1-5/16" 1.13"

Additional Product Data:

Shape:

No Orientation

Material(s):
  • Steel
