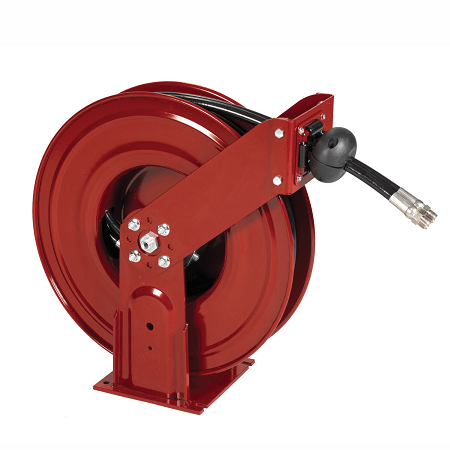

8081-J Alemite Narrow Double Post Reels - Grease - Reel Inlet, 3/8" NPTF(m) - Delivery Hose Outlet, 1/4" NPTF(f) - Delivery Hose specification, 3/8" x 50' (317870-50) - Max Pressure, 4,000 PSI

8081-J by Alemite | Narrow Double Post Reels | Grease | Reel Inlet: 3/8" Male NPTF | Delivery Hose Outlet: 1/4" Female NPTF | Delivery Hose Specification: 3/8" x 50ft (317870-50) | Max Pressure: 4000 PSI

Sale price$1,444.25
Alemite Narrow Double Post Reels - Grease
Buy More, Save More!
Quantity Price Each
4–7 $1,357.60
8–14 $1,299.83
15+ $1,155.40
Discounts applied in cart/checkout.

Product Data:
Applications,
  • Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Features,
  • Narrow Design - 8.5" wide, for better space utilization.
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Grease, grease, air, water, fuel, hydraulic fluid
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8081-J 7370 4,000 PSI 3/8" x 50' (317870-50) 3/8" NPTF(m) 1/4" NPTF(f) 72 Lb.
7370 7370 6,500 PSI NA 3/8" NPTF(m) NA 58.4 Lb.
