8081-D Alemite Narrow Double Post Reels - Oil - Reel Inlet, 1/2" NPSM(m) - Delivery Hose Outlet, 1/2" NPTF(m) - Delivery Hose specification, 1/2" x 50' (317813-50) - Max Pressure, 1,800 PSI

8081-D by Alemite | Narrow Double Post Reels | Oil | Reel Inlet: 1/2" Male NPSM | Delivery Hose Outlet: 1/2" Male NPTF | Delivery Hose Specification: 1/2" x 50ft (317813-50) | Max Pressure: 1800 PSI

Sale price$1,181.29

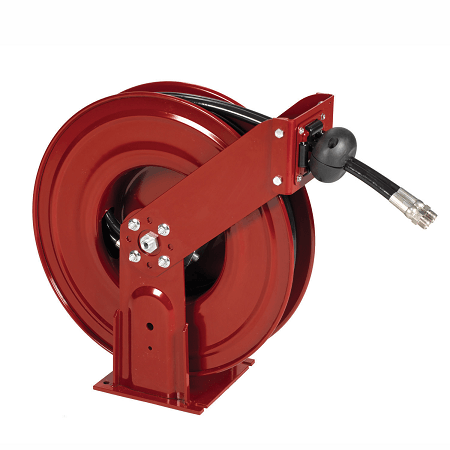

Alemite Narrow Double Post Reels - Oil
Buy More, Save More!
Quantity Price Each
4–7 $1,110.41
8–14 $1,063.16
15+ $945.03
Discounts applied in cart/checkout.
Applications,
  • Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Features,
  • Narrow Design - 8.5" wide, for better space utilization.
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Oil, grease, air, water, fuel, hydraulic fluid
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8081-D 7371 1,800 PSI 1/2" x 50' (317813-50) 1/2" NPSM(m) 1/2" NPTF(m) 74 Lb.
7371 7371 1,800 PSI NA 1/2" NPSM(m) NA 57.2 Lb.

Product Data:

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
