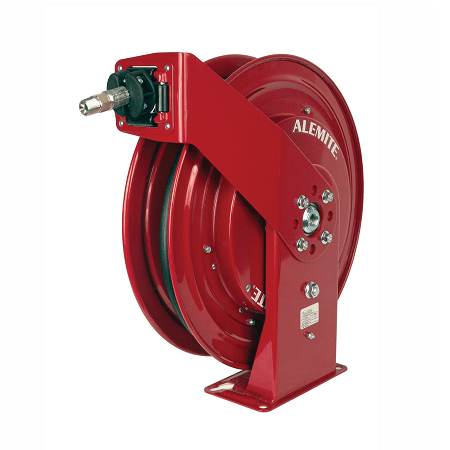

8078-F Alemite Heavy Duty Reel - Air/Water - Connecting Hose Inlet, 1/2" NPTF(m) - Delivery Hose Outlet, 1/4" NPTF(m) - Delivery Hose specification, 3/8" x 50' (317803-50) - Max Pressure, 300 PSI

8078-F by Alemite | Heavy Duty Reel | Air/Water | Connecting Hose Inlet: 1/2" Male NPTF | Delivery Hose Outlet: 1/4" Male NPTF | Delivery Hose Specification: 3/8" x 50ft (317803-50) | Max Pressure: 300 PSI

Sale price$766.38
Alemite Heavy Duty Reels - Air - Water
Buy More, Save More!
Quantity Price Each
5–14 $720.40
15–29 $651.42
30+ $574.79
Discounts applied in cart/checkout.

Product Data:
Applications,
  • Alemite Heavy Duty Reels set the industry standard for reliable, rugged performance in tough work environments. Engineered for optimum performance and safety, Alemite Heavy Duty Reels are appropriate for a wide range of demanding applications.
Features,
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Oil, grease, air, water
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Connecting Hose Connecting Hose Inlet Delivery Hose Outlet Weight
8078-F 7336-B 300 PSI 3/8" x 50' (317803-50) 317811-2 1/2" NPTF(m) 1/4" NPTF(m) 53 Lb.
8078-M 7335-B 300 PSI 1/2" x 50' (317811-50) 317811-2 1/2" NPTF(m) 1/2" NPTF(m) 61.Lb.
7336-B 7336-B 300 PSI NA NA NA NA 50 Lb.
