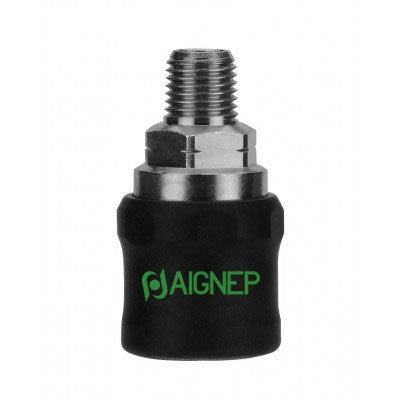

80621-06 by AIGNEP | QC Series | 1/4" SC Industrial x 3/8" Male NPTF
80621-06 by AIGNEP | QC Series | 1/4" SC Industrial x 3/8" Male NPTF

80621-06 by AIGNEP | QC Series | 1/4" SC Industrial x 3/8" Male NPTF

Sale price$20.80
Buy More, Save More!
Quantity Price Each
10–39 $19.55
40–79 $17.68
80+ $15.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass

Male Safety Coupler - NPTF

Pressure Rating: Vacuum-217 PSI
Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80621-04 NBR 70 NPTF 1/4" 0.512" 13 mm 19 mm 55 mm 30.5 mm
80621-06 NBR 70 NPTF 3/8" 0.512" 13 mm 19 mm 55 mm 30.5 mm
80621-08 NBR 70 NPTF 1/2" 0.669" 17 mm 22 mm 59 mm 30.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
