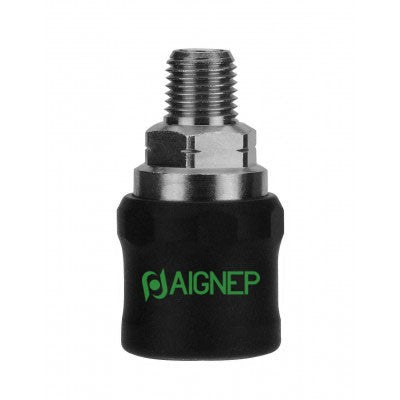

80621-04 by AIGNEP | QC Series | 1/4" SC Industrial x 1/4" Male NPTF
80621-04 by AIGNEP | QC Series | 1/4" SC Industrial x 1/4" Male NPTF

80621-04 by AIGNEP | QC Series | 1/4" SC Industrial x 1/4" Male NPTF

Sale price$20.60
Quantity Price Each
20–49 $19.57
50–99 $18.54
100+ $16.48
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass

Male Safety Coupler - NPTF

Pressure Rating: Vacuum-217 PSI
Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

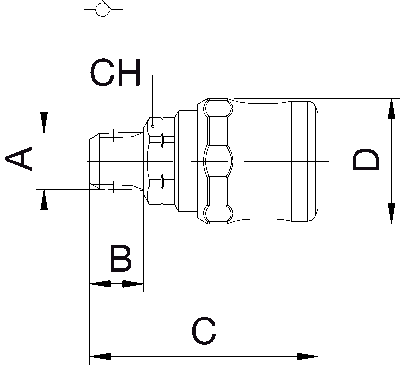

Product Number Seal Thread Type A B (IN) B CH C D
80621-04 NBR 70 NPTF 1/4" 0.512" 13 mm 19 mm 55 mm 30.5 mm
80621-06 NBR 70 NPTF 3/8" 0.512" 13 mm 19 mm 55 mm 30.5 mm
80621-08 NBR 70 NPTF 1/2" 0.669" 17 mm 22 mm 59 mm 30.5 mm
