80292-08 by AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/2" Female NPTF
80292-08 by AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/2" Female NPTF

80292-08 by AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/2" Female NPTF

Minimum Order Quantity: 5 Units

Sale price$5.90
Buy More, Save More!
Quantity Price Each
20–39 $5.55
40–79 $5.02
80+ $4.43
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male Tru-Flate QD Interchange
  • 1/2in Female NPTF

1/4" Tru-Flate Female (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

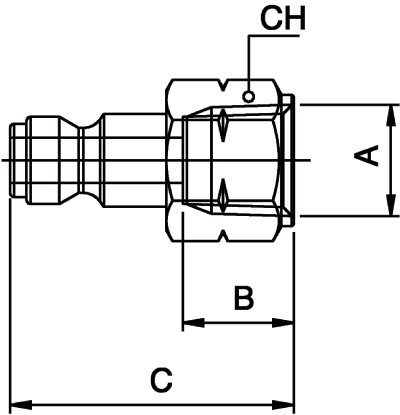

Product Number Seal Thread Type A B (IN) B CH C
80292-04 NBR 70 NPTF 1/4" 0.531" 13.5 mm 17 mm 34.5 mm
80292-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 17 mm 34.5 mm
80292-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 38.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
