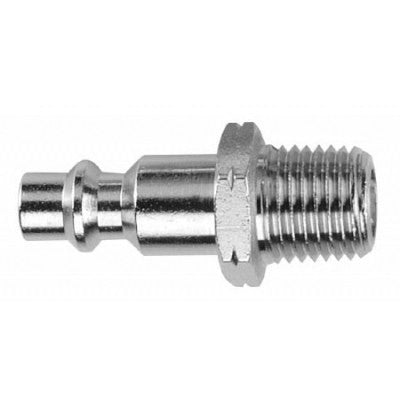

80221-04 by AIGNEP | QC Series | 1/4" Basic Industrial Plug x 1/4" Male NPTF
80221-04 by AIGNEP | QC Series | 1/4" Basic Industrial Plug x 1/4" Male NPTF

80221-04 by AIGNEP | QC Series | 1/4" Basic Industrial Plug x 1/4" Male NPTF

Minimum Order Quantity: 5 Units

Sale price$3.01
Buy More, Save More!
Quantity Price Each
20–39 $2.83
40–79 $2.56
80+ $2.26
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male Industrial Pneumatic QD Interchange
  • 1/4in Male NPTF

1/4” Industrial Male (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C
80221-04 NBR 70 NPTF 1/4" 0.512" 13 mm 17 mm 41.5 mm
80221-06 NBR 70 NPTF 3/8" 0.512" 13 mm 19 mm 41.5 mm
80221-08 NBR 70 NPTF 1/2" 0.669" 17 mm 22 mm 46 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
