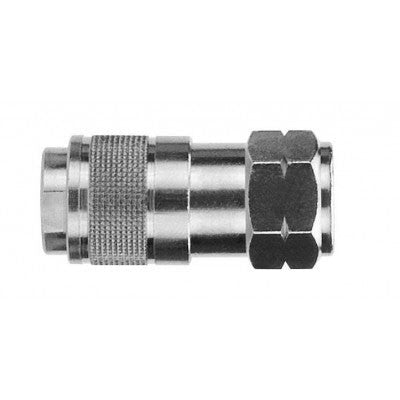

80212-02 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/8" Female NPTF
80212-02 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/8" Female NPTF

80212-02 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/8" Female NPTF

Minimum Order Quantity: 10 Units

Sale price$1.86
Buy More, Save More!
Quantity Price Each
20–39 $1.75
40–79 $1.58
80+ $1.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass

AC Mini Female Plug (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C
80212-02 NBR 70 NPTF 1/8" 0.374" 9.5 mm 14 mm 27 mm
80212-04 NBR 70 NPTF 1/4" 0.531" 13.5 mm 17 mm 31 mm
80212-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 20 mm 31 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
