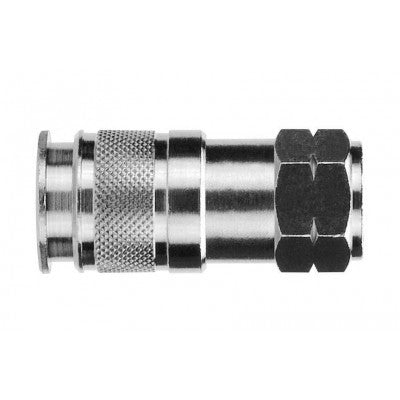

80195-08 by AIGNEP | QC Series | 3/8" Multisocket x 1/2" Female NPTF
80195-08 by AIGNEP | QC Series | 3/8" Multisocket x 1/2" Female NPTF

80195-08 by AIGNEP | QC Series | 3/8" Multisocket x 1/2" Female NPTF

Sale price$22.04
Buy more, save moreDiscounts applied in cart/checkout.

Multisocket Coupler - 3/8" Female NPTF

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80195-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 64 mm 28 mm

Additional Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 3/8in AIGNEP Multisocket QD Interchange
  • 1/2in Female NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
