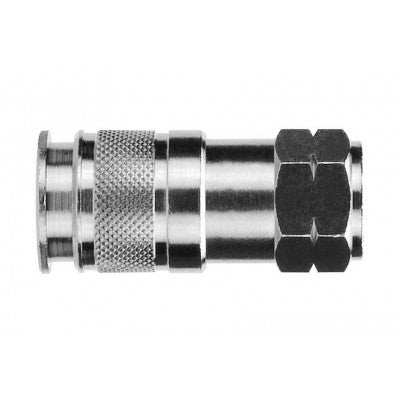

80192-06 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 3/8" Female NPTF
80192-06 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 3/8" Female NPTF

80192-06 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 3/8" Female NPTF

Sale price$12.15
Buy More, Save More!
Quantity Price Each
10–39 $11.42
40–79 $10.33
80+ $9.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female Multi-Socket QD Interchange
  • 3/8in Female NPTF

Multisocket Coupler - 1/4" Female NPTF

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80192-04 NBR 70 NPTF 1/4" 0.533" 13.5 mm 21 mm 54 mm 24 mm
80192-06 NBR 70 NPTF 3/8" 0.533" 13.5 mm 21 mm 54 mm 24 mm
80192-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 59 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
