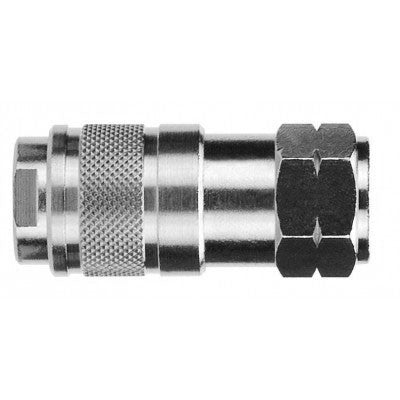

80132-06 by AIGNEP | QC Series | 3/8" Basic Industrial Socket x 3/8" Female NPTF
80132-06 by AIGNEP | QC Series | 3/8" Basic Industrial Socket x 3/8" Female NPTF

80132-06 by AIGNEP | QC Series | 3/8" Basic Industrial Socket x 3/8" Female NPTF

Sale price$14.34
Buy More, Save More!
Quantity Price Each
10–39 $13.48
40–79 $12.19
80+ $10.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female Industrial Pneumatic QD Interchange
  • 3/8in Female NPTF

3/8” Industrial Female Socket

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

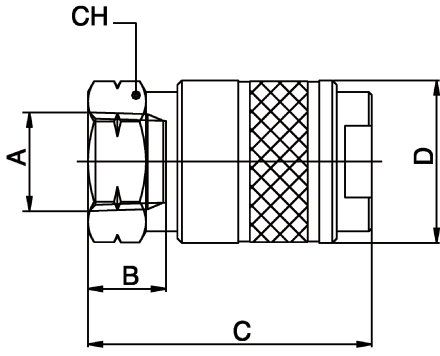

Product Number Seal Thread Type A B (IN) B CH C D
80132-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 24 mm 59.5 mm 28 mm
80132-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 63.5 mm 28 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
