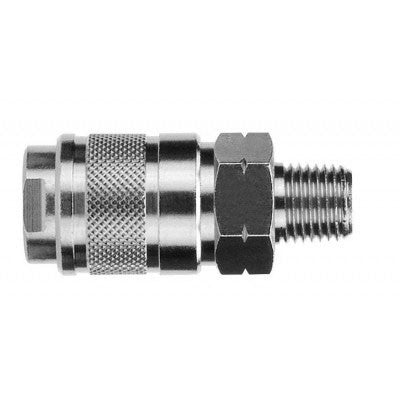

80131-06 by AIGNEP | QC Series | 3/8" Basic Industrial Socket x 3/8" Male NPTF

Sale price$14.86
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.

3/8” Male Industrial Male Socket

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80131-06 NBR 70 NPTF 3/8" 0.512" 13 mm 24 mm 60 mm 28 mm
80131-08 NBR 70 NPTF 1/2" 0.669" 17 mm 24 mm 63 mm 28 mm

Additional Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female Industrial Pneumatic QD Interchange
  • 3/8in Male NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
