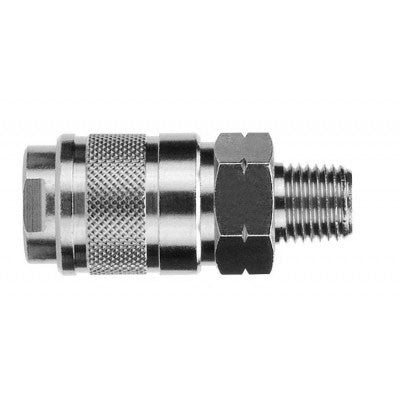

80121-08 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF
80121-08 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF

80121-08 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF

Sale price$13.10
Buy More, Save More!
Quantity Price Each
10–39 $12.31
40–79 $11.14
80+ $9.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female Industrial Pneumatic QD Interchange
  • 1/2in Male NPTF

1/4” Industrial Male Socket

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80121-04 NBR 70 NPTF 1/4" 0.512" 13 mm 21 mm 56.5 mm 24 mm
80121-06 NBR 70 NPTF 3/8" 0.512" 13 mm 21 mm 56.5 mm 24 mm
80121-08 NBR 70 NPTF 1/2" 0.669" 17 mm 24 mm 61 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
