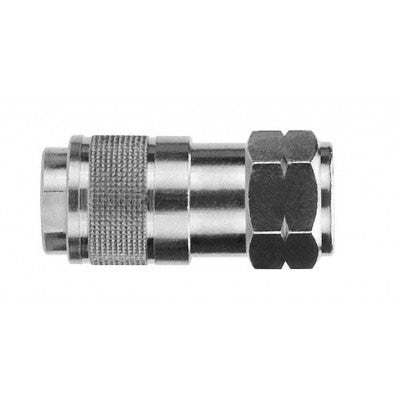

80112-02 by AIGNEP | QC Series | 1/4" Mignon Socket x 1/8" Female NPTF
80112-02 by AIGNEP | QC Series | 1/4" Mignon Socket x 1/8" Female NPTF

80112-02 by AIGNEP | QC Series | 1/4" Mignon Socket x 1/8" Female NPTF

Sale price$10.42
Buy More, Save More!
Quantity Price Each
10–39 $9.79
40–79 $8.86
80+ $7.82
Discounts applied in cart/checkout.

Product Data:

Series:
  • QC Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass

AC Mini Female Socket

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80112-02 NBR 70 NPTF 1/8" 0.335" 8.5 mm 16 mm 37 mm 18 mm
80112-04 NBR 70 NPTF 1/4" 0.531" 13.5 mm 17 mm 41 mm 18 mm
80112-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 20 mm 41 mm 18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
