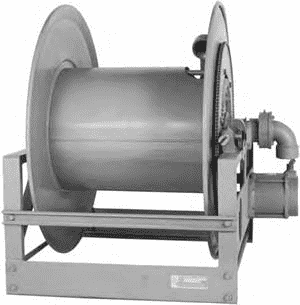

HD-8234-26-27 by Hannay | 8000 Series | Hydraulic Powered Rewind Reel

HD-8234-26-27 by Hannay | 8000 Series | Hydraulic Powered Rewind Reel

Sale price$2,898.94



8000 Hydraulic Powered Rewind Reels To handle single 1-1/2" or 2" I.D. hose.
Buy More, Save More!
Quantity Price Each
2–3 $2,725.00
4–9 $2,609.05
10+ $2,319.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • 8000 Series
Applications:
  • Bulk Transfer
  • Chemical Transfer
  • General Dispensing
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths and larger diameters of hose through 2" I.D.
  • Chain and sprocket drive powered by a hydraulic motor.
  • Power rewind reels feature a comet brake.
  • Standard inlet 90 deg. ball bearing swivel joint 2" female NPT threads.
  • Standard outlet flanged riser 2" female NPT threads
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/2" 2"
O.D. (in) 2-1/16" 2-9/16" A B D E F Crank F Power G H X Y
HD-8234-26-27 80' lengths 60' lengths 140 lbs. 26.25" 20" 27" 25.75" 33.75" 34.75" 26.62" 13.75" 18.75" 23.25"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
