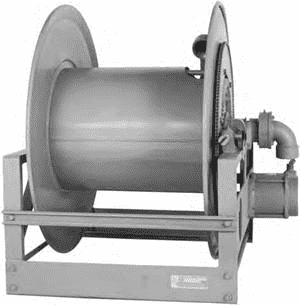

EP-8234-26-27 by Hannay | 8000 Series | Electric Powered Rewind Reel | 12 Volt DC

EP-8234-26-27 by Hannay | 8000 Series | Electric Powered Rewind Reel | 12 Volt DC

Sale price$2,898.94



8000 Electric Powered Rewind Reels To handle single 1-1/2" or 2" I.D. hose.
Buy More, Save More!
Quantity Price Each
2–3 $2,725.00
4–9 $2,609.05
10+ $2,319.15
Discounts applied in cart/checkout.
Applications:
  • Bulk Transfer
  • Chemical Transfer
  • General Dispensing
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths and larger diameters of hose through 2" I.D.
  • Chain and sprocket drive powered by an electric motor.
  • Power rewind reels feature a comet brake.
  • Standard inlet 90 deg. ball bearing swivel joint 2" female NPT threads.
  • Standard outlet flanged riser 2" female NPT threads
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/2" 2"
O.D. (in) 2-1/16" 2-9/16" A B D E F Crank F Power G H X Y
EP-8234-26-27 80' lengths 60' lengths 160 lbs. 26.25" 20" 27" 25.75" 33.75" 34.75" 26.62" 13.75" 18.75" 23.25"
EP-8238-26-27 100' lengths 75' lengths 185 lbs. 30.25" 24" 27" 25.75" 37.75" 38.75" 26.62" 13.75" 22.75" 23.25"
EP-8246-26-27 145' lengths 100' lengths 236 lbs. 38.25" 32" 27" 25.75" 45.75" 46.75" 26.62" 13.75" 30.75" 23.25"
EP-8226-33-34 85' lengths 60' lengths 120 lbs. 17.75" 11.5" 31.5" 31.75" 25.25" 26.25" 33.38" 17.75" 10.25" 27.75"
EP-8234-33-34 150' lengths 115' lengths 173 lbs. 26.25" 20" 31.5" 31.75" 33.75" 34.75" 33.38" 17.75" 18.75" 27.75"
EP-8238-39-40 340' lengths 225' lengths 258 lbs. 30.25" 24" 40" 39" 37.75" 38.75" 39.88" 20.38" 22.75" 37"

Product Data:

Series:
  • 8000 Series

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
