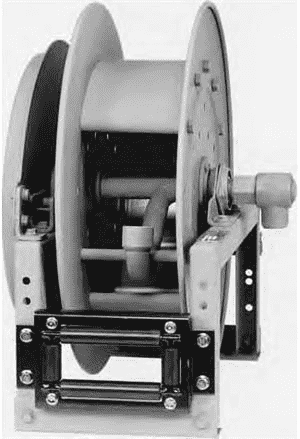

820-30-31-15.5A by Hannay | #43-52 | 800 Series | Spring Rewind Reel

820-30-31-15.5A by Hannay | #43-52 | 800 Series | Spring Rewind Reel

Sale price$1,618.76



800 Spring Rewind Reels To handle 3/4" through 1" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,521.63
8–14 $1,456.88
15+ $1,295.01
Discounts applied in cart/checkout.

Product Data:

Series:
  • 800 Series
Applications:
  • Fuel Dispensing
  • Waste Oil Evacuation
  • Air/Water
Features:
  • Rollformed channel frame for heavy-duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90 deg. balanced pressure swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B C D E F G H X Y
818-23-24-10.5J 50' length 25' length 87 lbs. 11.25" 6" 10.5" 23.25" 24.38" 15.5" 23.88" 12.5" 6.5" 20"
816-25-26-10.5B 60' length 35' length 96 lbs. 9.25" 4" 10.5" 25" 26.12" 13.5" 25.88" 13.5" 4.5" 21.75"
818-25-26-10.5B 70' length 50' length 102 lbs. 11.25" 6" 10.5" 25" 26.12" 15.5" 25.88" 13.5" 6.5" 21.75"
820-25-26-10.5A 85' length 75' length 131 lbs. 13.25" 8" 10.5" 25" 27" 18.25" 25.88" 13.5" 8.5" 21.75"
820-30-31-10.5A N/A 100' length 137 lbs. 13.25" 8" 10.5" 28.5" 30.5" 18.25" 31.38" 17" 8.5" 25.25"
820-30-31-15.5A 100' length N/A 145 lbs. 13.25" 8" 15.5" 28.5" 30.5" 18.25" 31.38" 17" 8.5" 25.25"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
