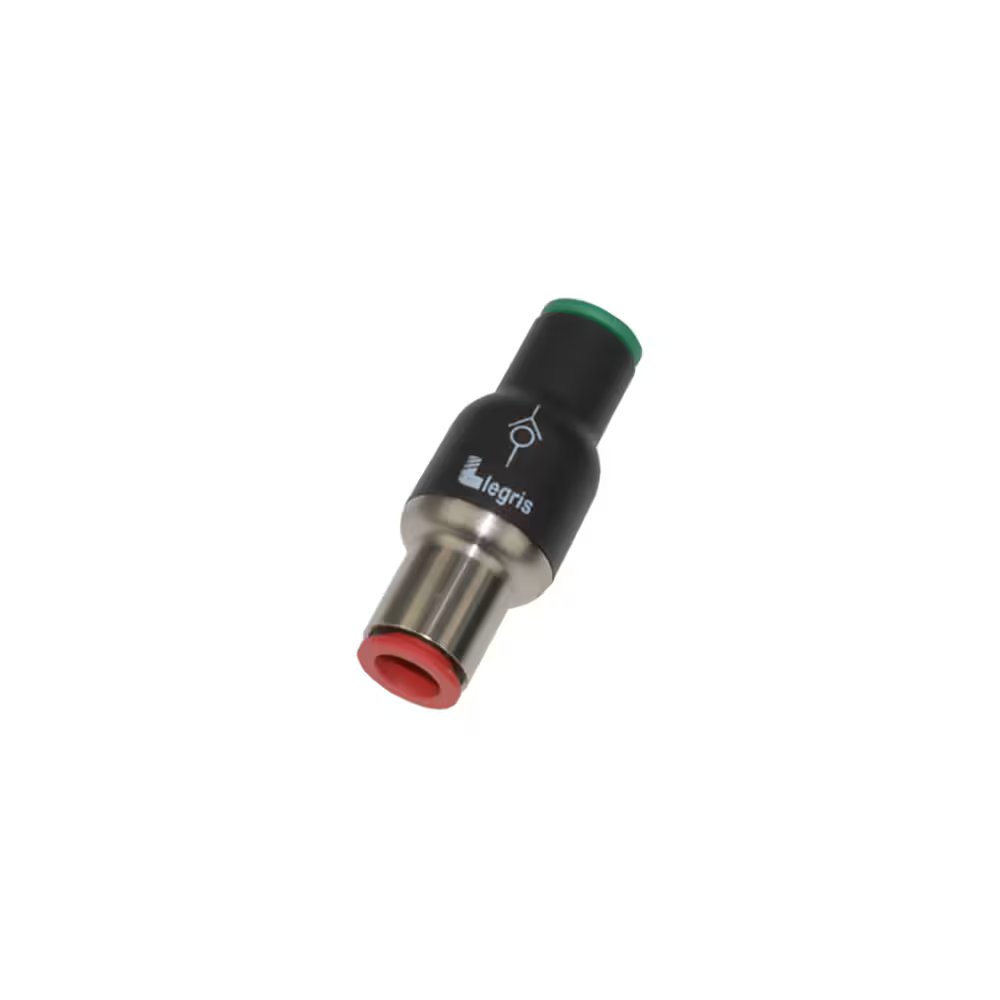

7996 56 00 by Parker | Legris In-Line Equal Non-Return Valve | 1/4" Tube Size | 1.61" Length | Straight | Polymer | Pack of 10

7996 56 00 by Parker | Legris In-Line Equal Non-Return Valve | 1/4" Tube Size | 1.61" Length | Straight | Polymer | Pack of 10

Sale price$314.24

by Parker Hannifin
In-Line Check Valves:7996 - in-line check valve tube to tube

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $295.39
15–29 $267.10
30+ $235.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7996 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Product Features:
  • Glass-reinforced nylon 6.6/nickel-plated brass body
  • VC – Acetal body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • Nitrile O-ring
  • EPDM O-ring (VC)
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
    VC – 34° to 150° F (1° to 65° C)
Compatible Fluids
  • 7 psi (0.48 bar)
    VC – 1/3 psi (0.02 bar)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD G L Oz
7996 56 00 1/4" .63" 1.61" .51 Oz
7996 60 00 3/8" .91" 2.50" .63 Oz
