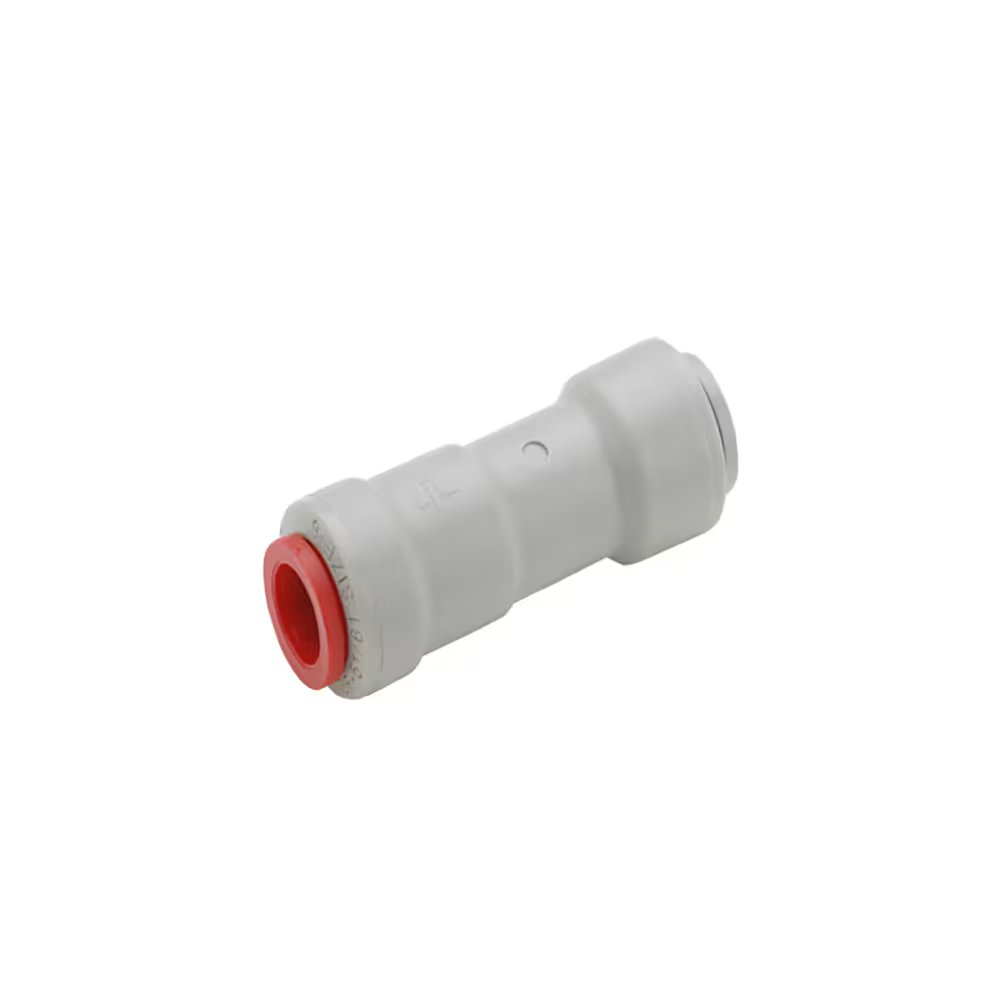

7992 56 00WP2 by Parker | Legris Single Non-Return Valve | 1/4" Tube Size | 51mm Length | Straight | Acetal | Pack of 5

7992 56 00WP2 by Parker | Legris Single Non-Return Valve | 1/4" Tube Size | 51mm Length | Straight | Acetal | Pack of 5

Sale price$80.18

by Parker Hannifin
LIQUIfit® Non-Return Valves:Single Non-Return Valve

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $75.37
20–59 $68.15
60+ $64.14
Discounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: water, beverages, liquid foodstuffs
  • Working Pressure:1 to 10 bar
  • Working Temperature:.02 bar up to O.D. 3/8"
    .03 bar for O.D. 1/2"
Advantages:
  • Fully compatible for use with water, beverages, liquid foodstuffs and gas
  • Excellent chemical compatibility
  • Hygienic design with smooth surfaces
Regulations:
  • RoHS
  • FDA: 21 CFR
  • NSF 51
  • REACH
Component Materials:
  • Body: POM
  • Seals: EPDM
  • Release button: Technical polymer
  • Teeth: Stainless Steel
Part Number ØD G L Kg
7992 56 00WP2 1/4" 17 mm 51 mm .008 Kg
7992 60 00WP2 3/8" 20 mm 55 mm .011 Kg

Product Data:

Series:
  • 7992 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
