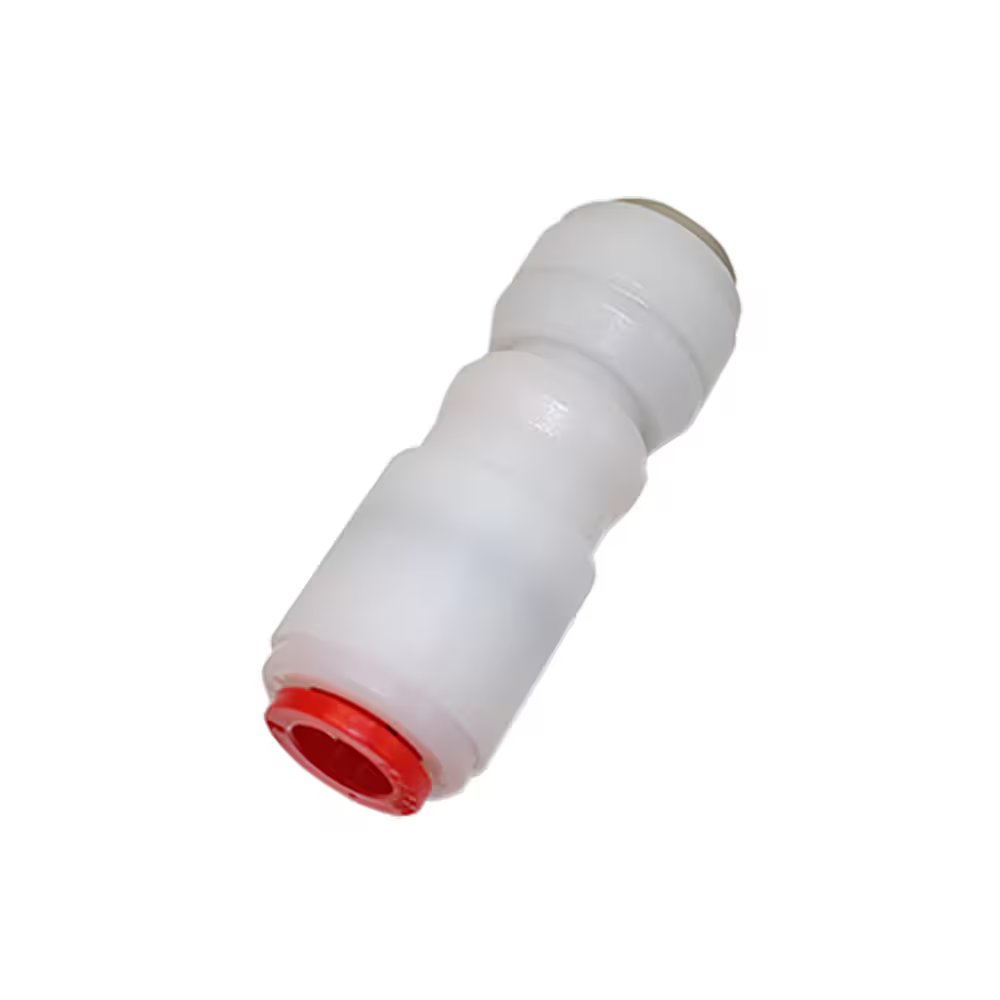

7992 06 00WP2 by Parker | Legris Single Non-Return Valve | 6 mm Tube Size | 45.5 mm Length | Straight | Acetal | Pack of 10

7992 06 00WP2 by Parker | Legris Single Non-Return Valve | 6 mm Tube Size | 45.5 mm Length | Straight | Acetal | Pack of 10

Sale price$278.61

by Parker Hannifin
LIQUIfit® Non-Return Valves:7992 Single Non-Return Valve

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $261.89
15–29 $236.82
30+ $208.96
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7992 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: water, beverages, liquid foodstuffs
  • Working Pressure:1 to 10 bar
  • Working Temperature:.02 bar up to O.D. 3/8"
    .03 bar for O.D. 1/2"
Advantages:
  • Fully compatible for use with water, beverages, liquid foodstuffs and gas
  • Excellent chemical compatibility
  • Hygienic design with smooth surfaces
Regulations:
  • RoHS
  • FDA: 21 CFR
  • NSF 51
  • REACH
Component Materials:
  • Body: POM
  • Seals: EPDM
  • Release button: Technical polymer
  • Teeth: Stainless Steel
Part Number ØD G L Kg
7992 06 00WP2 6 mm 15.5 mm 45.5 mm .007 Kg
7992 08 00WP2 8 mm 17.5 mm 48.5 mm .010 Kg
7992 10 00WP2 10 mm 20 mm 57.5 mm .014 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
