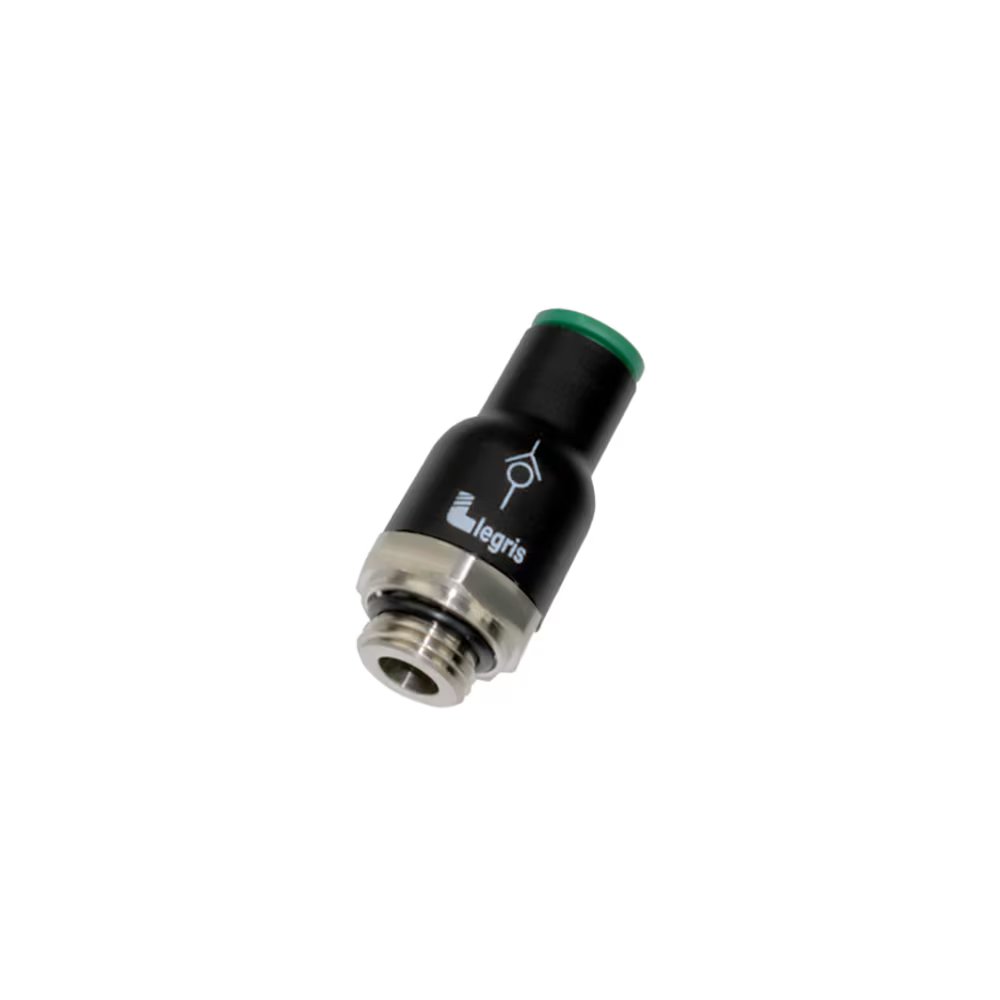

7984 04 19 by Parker | Legris In-Line Non-Return Valve | 4 mm Tube Size x M5x0.8 Male M5 Metric Thread | 9 mm Hex | 35 mm Length | Straight | Polymer | Pack of 10

7984 04 19 by Parker | Legris In-Line Non-Return Valve | 4 mm Tube Size x M5x0.8 Male M5 Metric Thread | 9 mm Hex | 35 mm Length | Straight | Polymer | Pack of 10

Sale price$199.75

by Parker Hannifin
Non-Return Valves:7984 In-Line Non-Return Valve, Supply, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $187.77
30–59 $169.79
60+ $149.81
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7984 Series
Shape:

Straight

Material(s):
  • Polymer
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: 0°C to +70°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Available in threaded or push-in version
  • Proven endurance according to the requirements of the DI 2006/42CE
      • Safe Installation:
  • Symbol showing the operating direction of flow
  • Color Code: Green for supply version, red for exhaust version
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d" >40 millions of cycle
Component Materials:
  • Body: Technical polymer
  • Body:Nickel-Plated Brass
  • Seal:NBR
Part Number ØD C E F H Kg
7984 04 19 4 mm M5x0.8 3 mm 9 mm 32 mm .008 Kg
7984 04 10 4 mm 1/8" 5 mm 16 mm 28.5 mm .015 Kg
7984 06 10 6 mm 1/8" 5 mm 16 mm 30.5 mm .015 Kg
7984 06 13 6 mm 1/4" 5.5 mm 16 mm 30.5 mm .015 Kg
7984 08 10 8 mm 1/8" 5 mm 19 mm 36 mm .021 Kg
7984 08 13 8 mm 1/4" 5.5 mm 19 mm 36 mm .023 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
