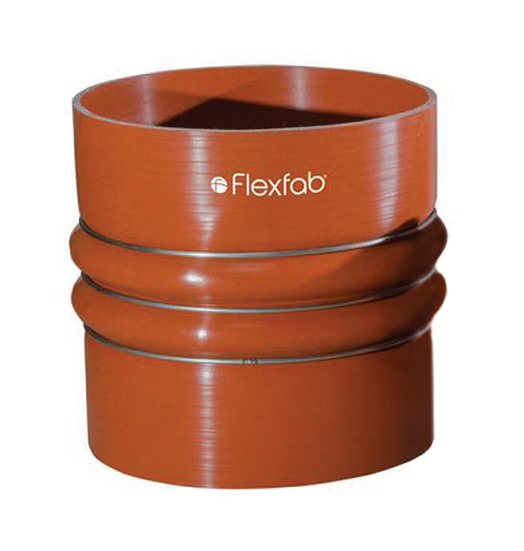

7970 by FlexFab | 6-ply Large ID Charge Air Connector (CAC) | 8.00" ID | 8.34" OD | Orange | 8" Overall Length

7970 by FlexFab | 6-ply Large ID Charge Air Connector (CAC) | 8.00" ID | 8.34" OD | Orange | 8" Overall Length

Sale price$180.59

Flexfab Industrial Hose - Large ID Charge Air Connectors (CAC)
Buy More, Save More!
Quantity Price Each
5–19 $169.75
20–59 $153.50
60+ $135.44
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Silicone Coated Fabric
  • Stainless Steel
Overview:
  • Can be used on both hot side or cold side of the Charge-Air Cooler system.
  • Note: Flexfab recommends double clamping at each end for proper installation.
Construction:
  • 6-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings
Specifications:
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Wall thickness is .138"/.198"
Applications:
  • Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
Part Number Inside Diameter Outside Diameter Overall Length Convolutes (Humps) Stainless Steel Rings Maximum OperatingPressure - PSI WeightLBS Clamp
7968 6.00" 6.34" 8.00" 2 3 50 PSI 1.42 lbs FLX2584-0662
7969 7.00" 7.34" 8.00" 2 3 40 PSI 1.68 lbs FLX2584-0762
7970 8.00" 8.34" 8.00" 2 3 40 PSI 1.92 lbs FLX2584-0862
*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
