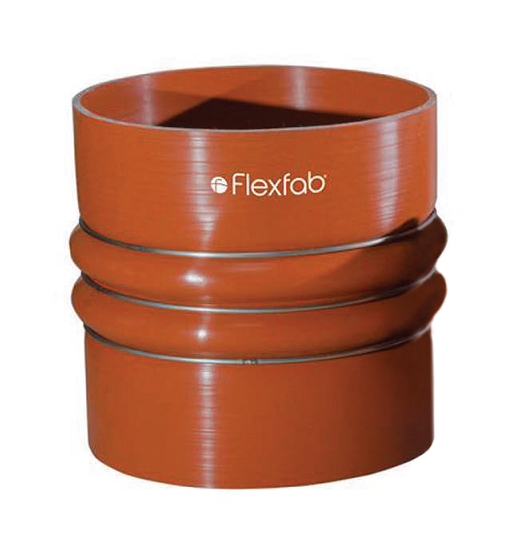

7968 by FlexFab | 6-ply Large ID Charge Air Connector (CAC) | 6.00" ID | 6.34" OD | Orange | 8" Overall Length
Buy more, save moreDiscounts applied in cart/checkout.
Charge Air Connectors
Large ID Charge Air Connectors
6-ply meta-aramid charge air connectors with stainless steel pressure retention rings, in 6" to 8" inside diameters for the hot or cold side.
1
What are these connectors used for?
- Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
- Can be used on both the hot side and cold side of the charge air cooler system
2
What are the key specifications?
Construction
6-ply silicone-coated meta-aramid fabric with stainless steel pressure retention rings
Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Wall Thickness
.138" / .198"
Use
Hot side or cold side
3
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Overall Length | Convolutes (Humps) | Stainless Steel Rings | Max. Operating Pressure | Weight | Constant Tension Clamp |
|---|---|---|---|---|---|---|---|---|
| 7968 | 6.00" | 6.34" | 8.00" | 2 | 3 | 50 PSI | 1.42 lbs | FLX2584-0662 |
| 7969 | 7.00" | 7.34" | 8.00" | 2 | 3 | 40 PSI | 1.68 lbs | FLX2584-0762 |
| 7970 | 8.00" | 8.34" | 8.00" | 2 | 3 | 40 PSI | 1.92 lbs | FLX2584-0862 |
⚠ NOTE: Flexfab recommends double clamping at each end for proper installation.
Specifications for reference only. Specific test data available on request.
Additional Product Data:
Shape:
Straight
Material(s):
