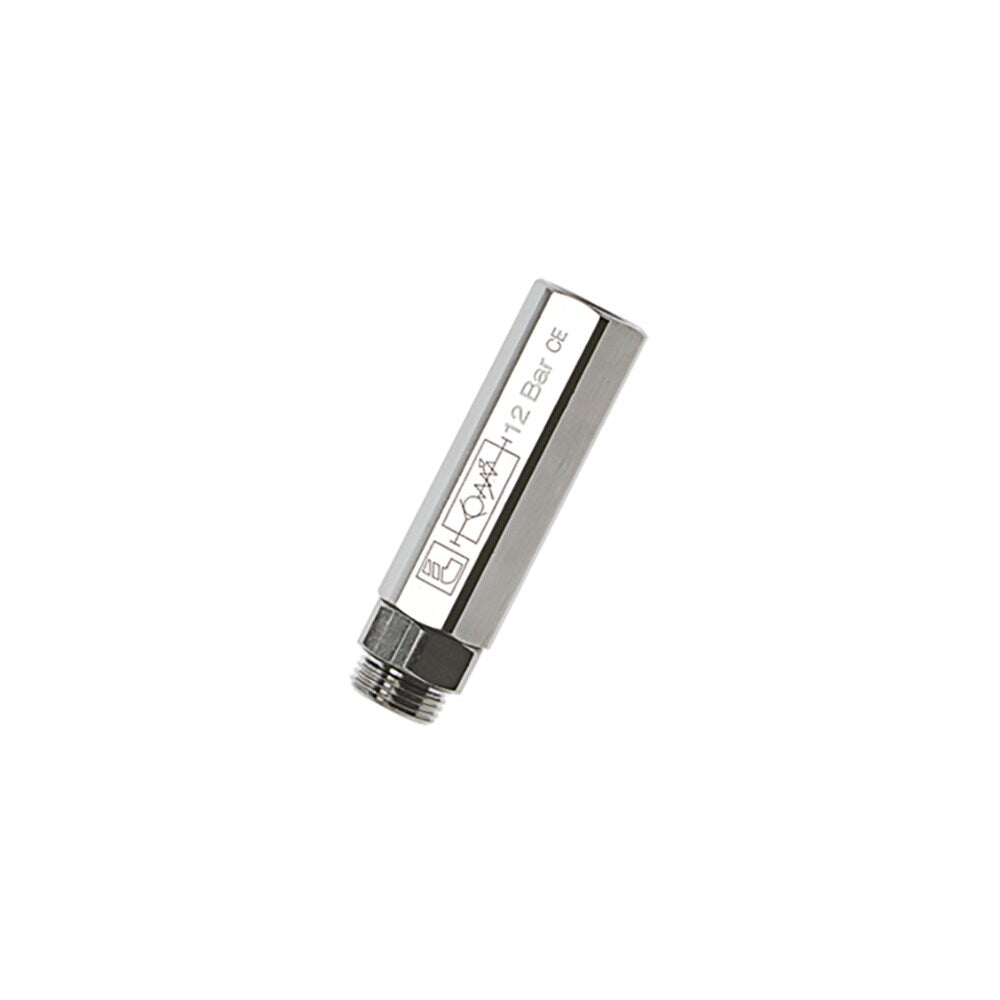

7932 17 17 by Parker | Legris Adjustable Check Valve Exhaust | 3/8" Male/Female BSPP Thread | 77.5 m Length | Straight | Nickel-Plated Brass | Pack of 5

7932 17 17 by Parker | Legris Adjustable Check Valve Exhaust | 3/8" Male/Female BSPP Thread | 77.5 m Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$450.81

Package Quantity: 5 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 12 bar
  • Working Temperature: -20°C to +80°C
  • Cracking Pressure:
    M5x0.8 - G1/8 - G1/4 -> 1 to 0.10 bar
    G3/8 -> 1 to 0.15 bar
    G1/2 -> 1 to 0.20 bar
Advantages:
  • Adjustment and locking of the non-return valve cracking pressure with two 2 Allen keys prevents the settings from being accidentally changed
  • Designed with locking nut to protect initial setting in the event of vibration or accidental handling
  • Developed for the food process industry (FDA compliance) and smooth external profile to facilitate cleaning in situ
Regulations:
  • RoHS
  • REACH
  • FDA : 21CFR
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Seat Seal: NBR
  • Non-Return Valve: Chemical nickel-plated brass
  • Spring: Stainless Steel
  • Locking nut: Brass
  • Seals: FKM
  • Adjustment: Brass
  • Adapter: FDA chemical nickel-plated brass
Part Number C E E1 F F1 F2 L Kg
7932 17 17 3/8" 7.5 mm 11 mm 20 mm 8 mm 10 mm 70 mm .123 Kg
7932 21 21 1/2" 9 mm 13 mm 24 mm 10 mm 12 mm 82.5 mm .212 Kg

Additional Product Data:

Series:
  • 7932 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male BSPP
  • 3/8in Female BSPP
