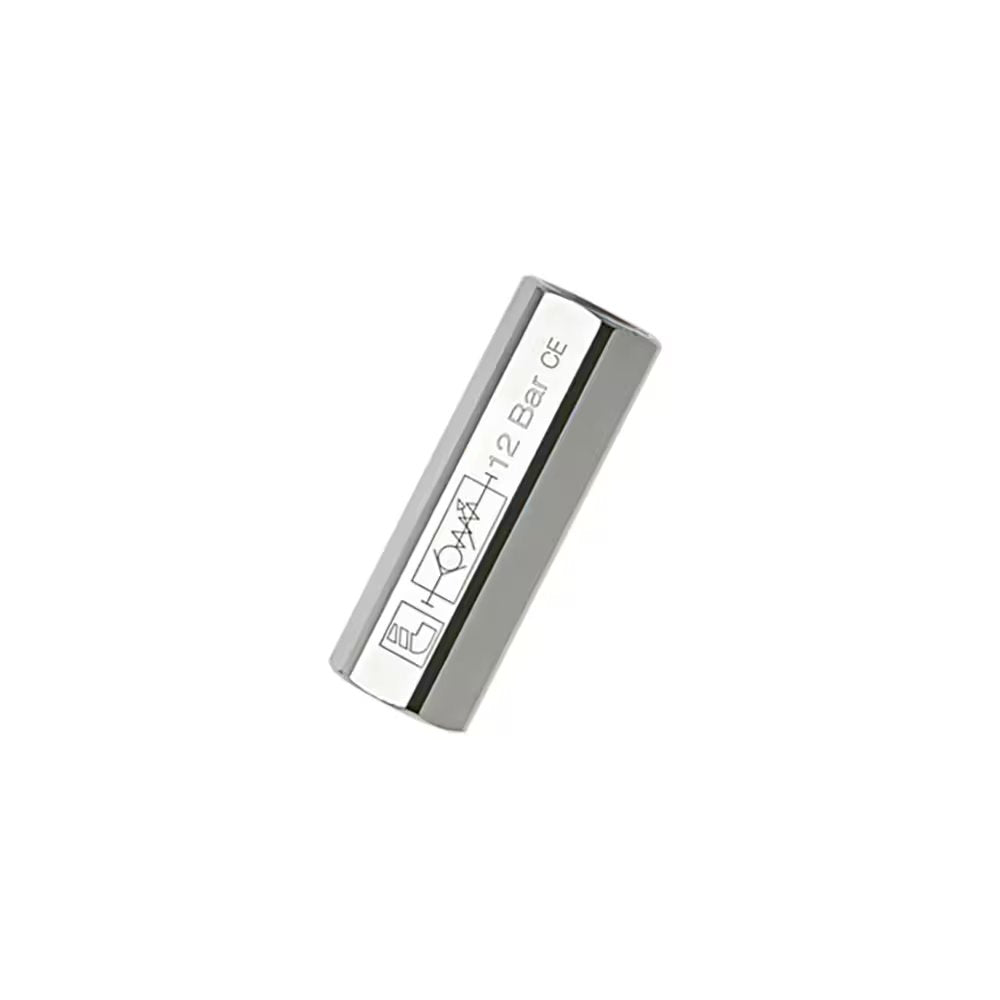

7930 13 13 by Parker | Legris Adjustable Check Valve | 1/4" Double Female BSPP Thread | 54 mm Length | Straight | Nickel-Plated Brass | Pack of 10

7930 13 13 by Parker | Legris Adjustable Check Valve | 1/4" Double Female BSPP Thread | 54 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$736.84

by Parker Hannifin
Adjustable Non-Return Valves:7930 Adjustable Check Valve, Double Female BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $692.63
15–29 $626.31
30+ $552.63
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7930 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 12 bar
  • Working Temperature: -20°C to +80°C
  • Cracking Pressure:
    M5x0.8 - G1/8 - G1/4 -> 1 to 0.10 bar
    G3/8 -> 1 to 0.15 bar
    G1/2 -> 1 to 0.20 bar
Advantages:
  • Adjustment and locking of the non-return valve cracking pressure with two 2 Allen keys prevents the settings from being accidentally changed
  • Designed with locking nut to protect initial setting in the event of vibration or accidental handling
  • Developed for the food process industry (FDA compliance) and smooth external profile to facilitate cleaning in situ
Regulations:
  • RoHS
  • REACH
  • FDA : 21CFR
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Seat Seal: NBR
  • Non-Return Valve: Chemical nickel-plated brass
  • Spring: Stainless Steel
  • Locking nut: Brass
  • Seals: FKM
  • Adjustment: Brass
  • Adapter: FDA chemical nickel-plated brass
Part Number C E E1 F F1 F2 L Kg
7930 13 13 1/4" 10 mm 7.5 mm 16 mm 6 mm 8 mm 54 mm .073 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
