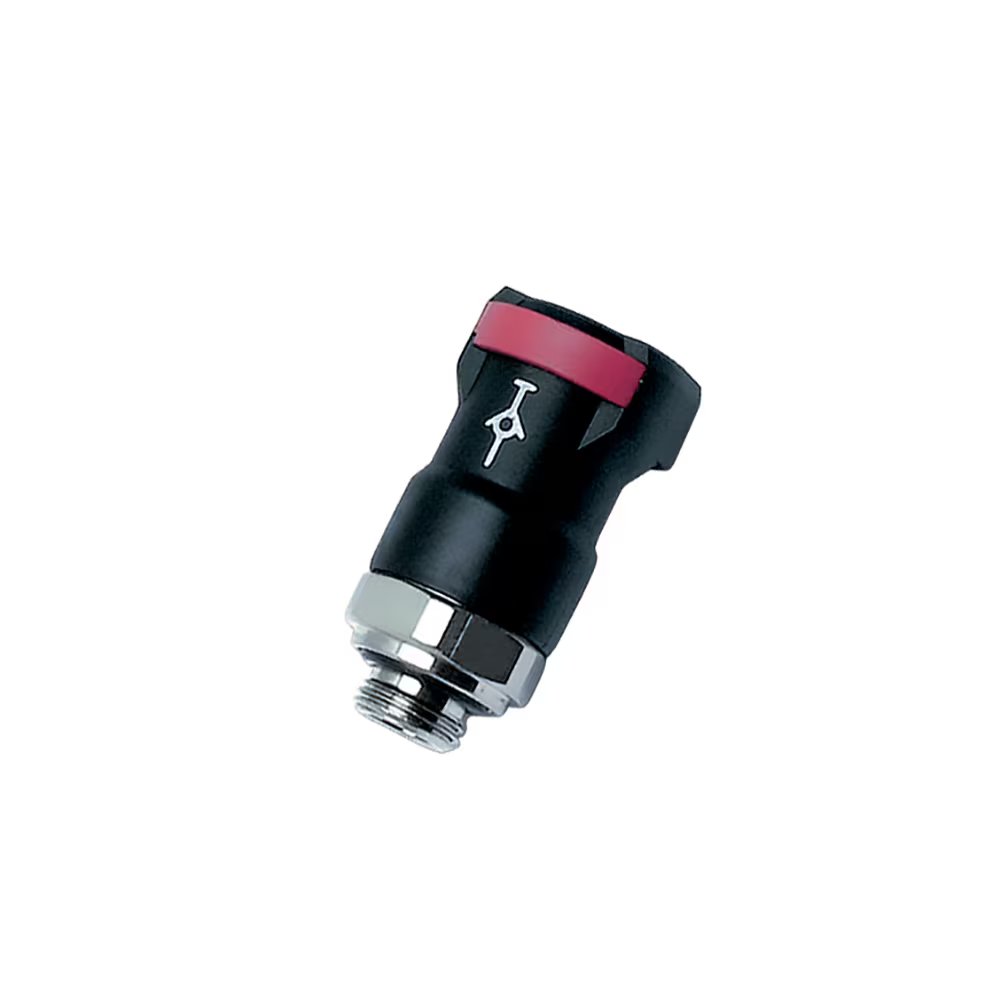

7921 05 10 by Parker | Legris Snap Fitting Body with Male Tread | 5 mm Tube Size x 1/8" Male BSPP Thread | 16 mm Hex | 37 mm length | Straight | Polymer | Pack of 10 | Pack of 10

7921 05 10 by Parker | Legris Snap Fitting Body with Male Tread | 5 mm Tube Size x 1/8" Male BSPP Thread | 16 mm Hex | 37 mm length | Straight | Polymer | Pack of 10 | Pack of 10

Sale price$497.21

by Parker Hannifin
Snap Fitting:7921 Body with Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $467.38
15–29 $422.63
30+ $372.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7921 Series
Shape:

Straight

Material(s):
  • Polymer
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: -20°C to +80°C
  • Flow Characteristics at 6 bar: DN 5 mm: 1000 NI/min / DN 7 mm: 1900 NI/min
Advantages:
  • Partial venting of systems for energy and time-saving during maintenance operations
  • Protection of individuals by maintaining pressure if necessary
  • Audible click indicates connection
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Plug: Nickel-plated brass
  • Seal: NBR
  • Ring: Technical polymer
Part Number Diameter Nominal (DN) C E F G H Kg
7921 05 10 5 mm 1/8" 5.5 mm 16 mm 18.5 mm 31.5 mm .021 Kg
7921 05 13 5 mm 1/4" 5.5 mm 16 mm 18.5 mm 31.5 mm .023 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
