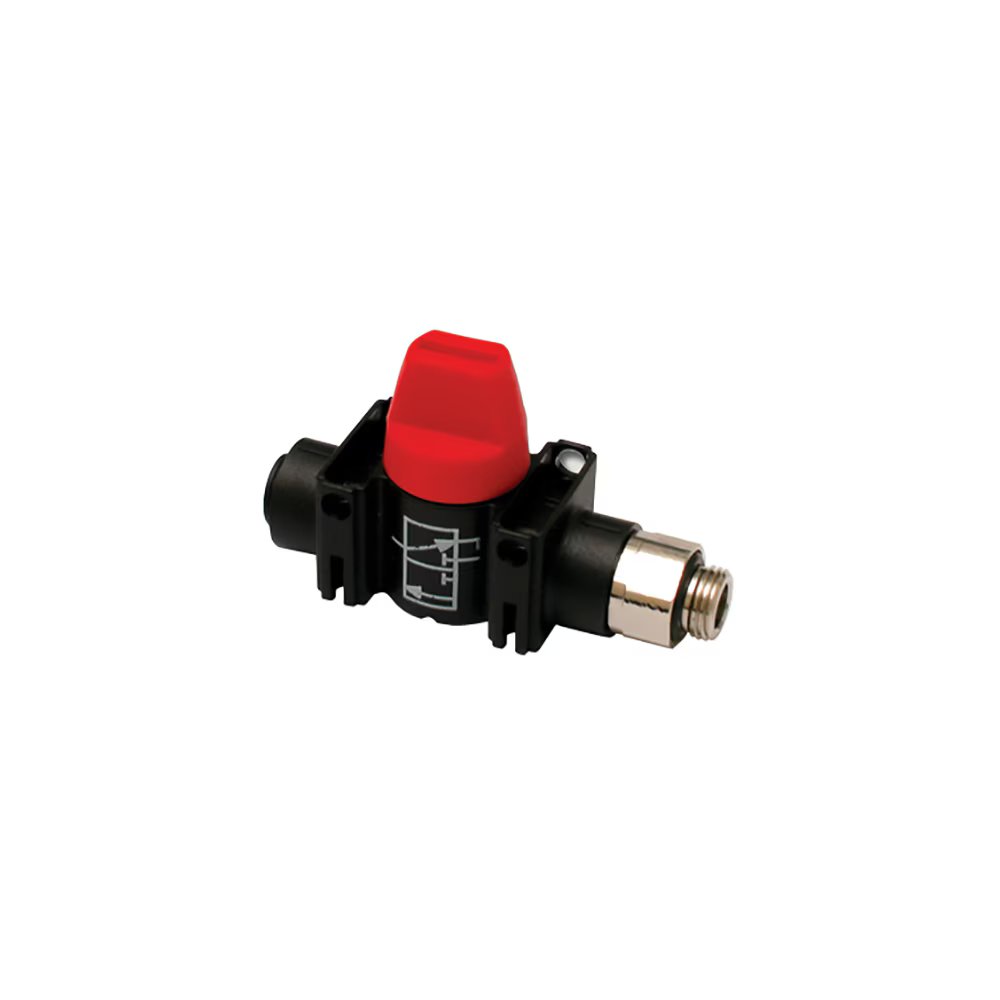

7915 04 11 by Parker | Legris In-Line Mini Ball Valve | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 13 mm Hex | 2.44" Length | Straight | Polymer | Pack of 10

7915 04 11 by Parker | Legris In-Line Mini Ball Valve | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 13 mm Hex | 2.44" Length | Straight | Polymer | Pack of 10

Sale price$382.68

by Parker Hannifin
Mini Series:7915 - 3/2, with vent, with male thread and push-to-connect port NPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $359.72
15–29 $325.28
30+ $287.01
Discounts applied in cart/checkout.

Product Data:

Series:
  • Mini Series
Shape:

Straight

Ends Configuration:
  • 5/32in Push-to-Connect
  • 1/8in Male NPT
Product Features:
      Optimum Solution
  • Full Flow
  • Marked with the pneumatic symbol for identification of its function
  • Lightweight and compact
  • Extremely compact, easy-to-operate lever
  • Lever with screwdriver slot to facilitate operation
      • Proven Technology - Three in-line versions:
  • Excellent static and dynamic sealing
  • High-strength polyamide
  • Automatic seal wear compensation for long-term reliability
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability
Applications:
  • Robotics
  • Vacuum
  • Semi-Conductors
  • Packaging
  • Textile
  • Pneumatics
Pressure Range
  • 145 psi (10 bar)
Temperature Range
  • -4° to 176° F (-20° to 80° C)
Compatible Fluids
  • Compressed air only
Part Number ØD NPT (C) F H J K L L1 N Oz
7915 04 11 5/32" 1/8" 13 mm 1.46" .55" .87" 2.44" 1.46" .64" 1.76 Oz
7915 08 14 5/16" 1/4" 14 mm 1.46" .59" 1.18" 2.40" 1.61" .64" 2.40 Oz
7915 56 11 1/4" 1/8" 13 mm 1.46" .55" .87" 2.44" 1.46" .64" 1.90 Oz
7915 56 14 1/4" 1/4" 14 mm 1.46" .59" .87" 2.44" 1.38" .64" 2.40 Oz
7915 60 14 3/8" 1/4" 16 mm 1.69" .69" 1.18" 2.40" 1.65" .87" 3.60 Oz
7915 60 18 3/8" 3/8" 18 mm 1.69" .77" 1.18" 2.91" 1.65" .87" 4.94 Oz
