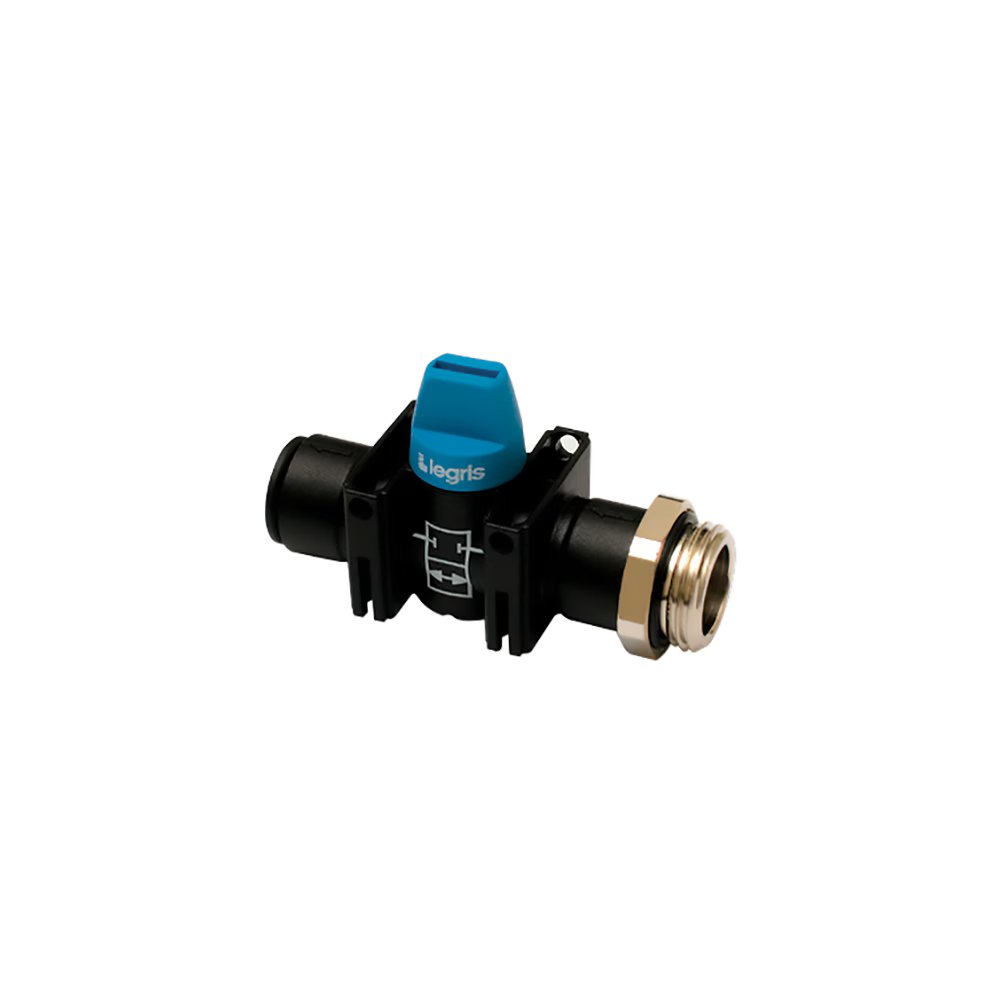

7911 12 21 by Parker | Legris In-Line Mini-Ball Valve | 12 mm Tube Size x 1/2" Male BSPP Thread | 24 mm Hex | 75 mm Length | Straight | Polymer | Pack of 5
by Parker Hannifin
Mini Series:7911 2/2 In-Line Mini-Ball Valve, Male BSPP Thread
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $345.08 |
| 15–29 | $312.04 |
| 30+ | $275.33 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | G | H | K | L | L1 | N | Kg |
| 7911 06 10 | 6 mm | 1/8" | 5 mm | 13 mm | 14 mm | 37 mm | 22 mm | 62 mm | 37 mm | 16 mm | .045 Kg |
| 7911 08 13 | 8 mm | 1/4" | 5.5 mm | 16 mm | 17.5 mm | 37 mm | 22 mm | 61 mm | 35 mm | 16 mm | .040 Kg |
| 7911 10 17 | 10 mm | 3/8" | 5.5 mm | 20 mm | 22 mm | 43 mm | 30 mm | 74 mm | 41 mm | 22 mm | .075 Kg |
| 7911 12 21 | 12 mm | 1/2" | 7.5 mm | 24 mm | 26 mm | 43 mm | 30 mm | 75 mm | 42 mm | 22 mm | .075 Kg |
