79100400 by Dixon Valve | Legris Push-In Fitting | Composite Mini Ball Valve | 5/32" Size | Nylon/Nickel-Plated Brass

79100400 by Dixon Valve | Legris Push-In Fitting | Composite Mini Ball Valve | 5/32" Size | Nylon/Nickel-Plated Brass

Sale price$62.80

Dixon Valve & Coupling

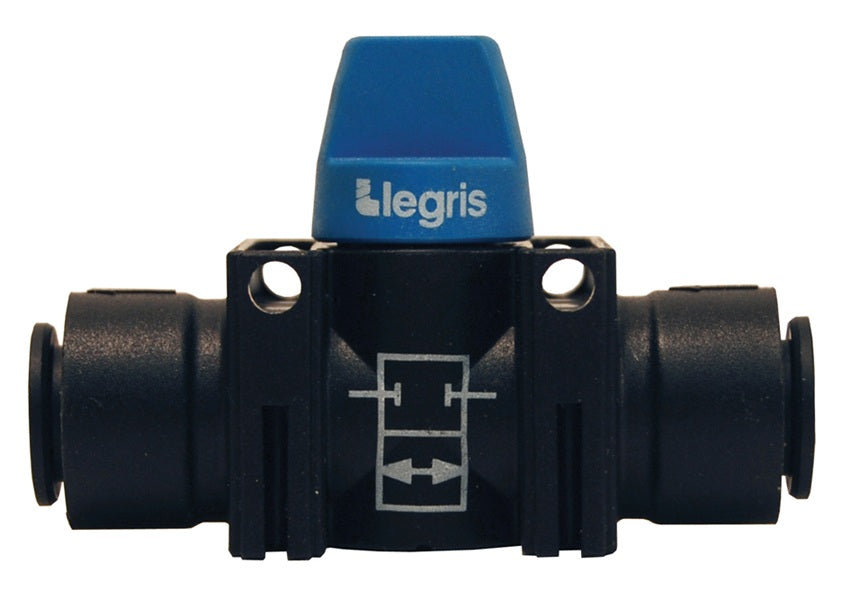

Legris Push-In Fitting | Composite Mini Ball Valve

2-way, non-venting valve enables in-line opening and closing of a pneumatic circuit.
Buy More, Save More!
Quantity Price Each
10–39 $59.03
40–79 $53.38
80+ $50.24
Discounts applied in cart/checkout.
Features:
  • 2-way, non-venting valve.
  • Compact and lightweight, suited to all types of installation.
  • Suitable fluid: compressed air.
  • A screwdriver slot allows opening and closing even when access is difficult.
  • Handle is differentiated by a blue color and marked with the corresponding pneumatic symbol enabling immediate identification by the user.
Materials:
  • Nylon body with nickel-plated brass ball; seal: NBR
Specifications:
  • Maximum operating pressure: 145 PSI
  • Vacuum rating: vacuum of 28" Hg (99% of vacuum)
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
Part Number Size
79100400 5/32"
79105600 1/4"
79100800 5/16"
79106000 3/8"

Product Data:

Brand:
  • Legris
Shape:

Straight

Ends Configuration:
  • 5/32in Push-to-Connect
  • 5/32in Push-to-Connect
  • Some Ends Match

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
