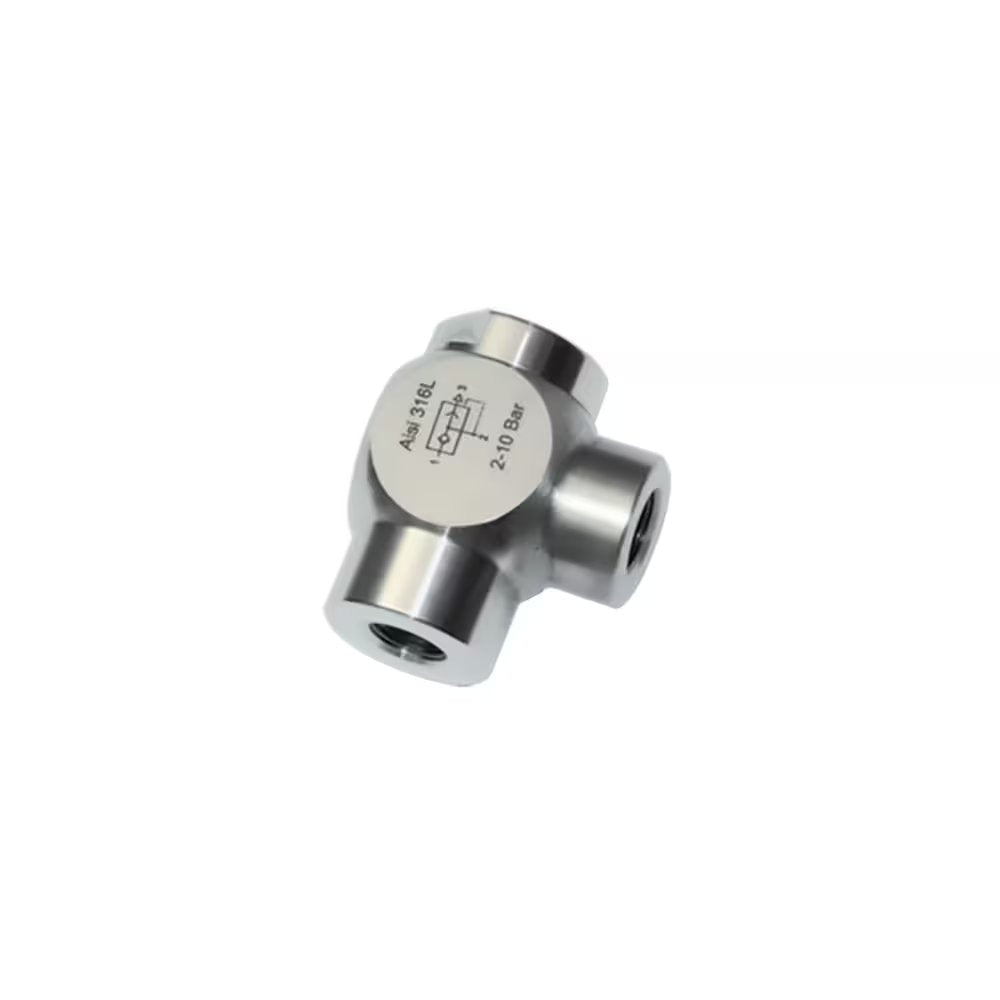

7899 00 13 by Parker | Legris Quick Exhaust Valve | 1/4" Female BSPP Thread | 37.5mm Length | 90° Elbow | 316L Stainless Steel

7899 00 13 by Parker | Legris Quick Exhaust Valve | 1/4" Female BSPP Thread | 37.5mm Length | 90° Elbow | 316L Stainless Steel

Sale price$168.15

by Parker Hannifin
Metal Quick Exhaust Valves:7899 Quick Exhaust Valve, Female BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $158.06
30–59 $142.93
60+ $126.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7899 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure:
    7970: 0.7 to 10 bar
    7971 and 7899: 2 to 10 bar
  • Working Temperature:
    7970: -20°C to +70°C
    7971: -10°C to +70°C
    7899:
    Threads G1/8 and G1/4: -10°C to +120°C
    Threads G1/8 and G1/4: -20°C to +80°C
Advantages:
  • Cycle time reduction: increased return speed
  • Exhaust silencer integrated and 360° orientation available on some versions
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Integrated silencer: Stainless Steel (Model 7971)
  • Lip Seals:
    7970-7971: Polyurethane elastomer
    7899: - G1/8 and G1/4 FKM
    - G3/8 and G1, Polyurethane
  • Body:
    Model 7970: Nickel-Plated Brass
    Model 7971: Anodized Aluminum
    Model 7899: Stainless Steel
Part Number Diameter Nominal (DN) C F F1 H L L1 L2 Kg
7899 00 10 7 mm 1/8" 17 mm 22 mm 31.5 mm 37.5 mm 21 mm 16.5 mm .096 Kg
7899 00 13 7 mm 1/4" 17 mm 22 mm 31.5 mm 37.5 mm 21 mm 16.5 mm .083 Kg
7899 00 17 9 mm 3/8" 22 mm 26 mm 37 mm 44.5 mm 25.5 mm 19 mm .140 Kg
7899 00 21 12 mm 1/2" 27 mm 32 mm 45 mm 54 mm 31 mm 23 mm .235 Kg
