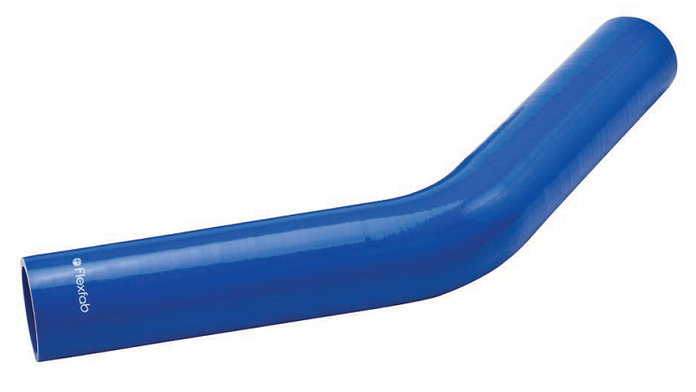

7896-300 by FlexFab | Series 7896 | 3-ply | 3.00" ID | 3.32" OD | Blue | 45° Elbow | Silicone | 7.50" Leg Length
Buy more, save moreDiscounts applied in cart/checkout.
Silicone Elbows & Reducers
Series 7884 & 7896 Silicone Elbows
90° (Series 7884) and 45° (Series 7896) silicone elbows with 3 plies of meta-aramid reinforcement, rated to +500°F.
1
What are these elbows used for?
- Heavy-duty pressure connections in hostile engine environments
- Connections between the turbocharger and the engine
- Extreme temperature and varied pressure ranges where high performance is required
- Resists hardening, cracking, cold leaks, aging, chemicals, steam, ozone and coolants found in the engine environment
2
What are the key specifications?
Construction
Silicone hose with 3 plies of meta-aramid reinforcement
Standards
Meets or exceeds SAE J20 R1 Class A and TMC RP303B Class I Grade II
Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Wall Thickness
Custom wall, .140" / .190"
Working Pressure
1/3 of the burst pressure
Angles
90° (7884) and 45° (7896)
3
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Leg Length (in.) — Available Clamp Space | Bend Radius | Burst Pressure — SAE J20 R1 (PSI) | Burst Pressure — TMC (PSI) | Weight | Lined Worm Gear Clamp | Constant Tension Clamp |
|---|---|---|---|---|---|---|---|---|---|
| Series 7884 — 90° Silicone Elbows | |||||||||
| 7884-075 | 0.75" | 1.07" | 6.00 | 1.50" | 325 | 125 | 0.50 lbs | FLX2582-0012 | — |
| 7884-100 | 1.00" | 1.32" | 6.00 | 2.00" | 300 | 125 | 0.50 lbs | FLX2582-0016 | — |
| 7884-125 | 1.25" | 1.57" | 6.00 | 2.50" | 275 | 125 | 0.50 lbs | FLX2582-0020 | FLX2584-0212 |
| 7884-150 | 1.50" | 1.82" | 6.00 | 3.00" | 250 | 125 | 0.50 lbs | FLX2582-0024 | FLX2584-0212 |
| 7884-175 | 1.75" | 2.07" | 6.00 | 3.50" | 225 | 125 | 0.50 lbs | FLX2582-0028 | FLX2584-0262 |
| 7884-200 | 2.00" | 2.32" | 6.00 | 4.00" | 200 | 100 | 0.50 lbs | FLX2582-0032 | FLX2584-0262 |
| 7884-225 | 2.25" | 2.57" | 6.00 | 3.38" | 175 | 100 | 1.00 lbs | FLX2582-0036 | FLX2584-0312 |
| 7884-250 | 2.50" | 2.82" | 6.50 | 3.75" | 150 | 100 | 1.00 lbs | FLX2582-0040 | FLX2584-0312 |
| 7884-275 | 2.75" | 3.07" | 7.00 | 4.13" | 125 | 100 | 1.00 lbs | FLX2582-0044 | FLX2584-0362 |
| 7884-300 | 3.00" | 3.32" | 7.50 | 4.50" | 100 | 100 | 1.00 lbs | FLX2582-0048 | FLX2584-0362 |
| 7884-350 | 3.50" | 3.82" | 8.50 | 5.25" | 75 | 100 | 1.50 lbs | FLX2582-0056 | FLX2584-0412 |
| 7884-400 | 4.00" | 4.32" | 9.50 | 6.00" | 50 | 100 | 1.50 lbs | FLX2582-0064 | FLX2584-0462 |
| 7884-500 | 5.00" | 5.32" | 13.50 | 7.50" | — | — | 1.50 lbs | — | FLX2584-0562 |
| Series 7896 — 45° Silicone Elbows | |||||||||
| 7896-075 | 0.75" | 1.07" | 6.00 | 4.00" | 325 | 125 | 0.50 lbs | FLX2582-0012 | — |
| 7896-100 | 1.00" | 1.32" | 6.00 | 4.00" | 300 | 125 | 0.50 lbs | FLX2582-0016 | — |
| 7896-125 | 1.25" | 1.57" | 6.00 | 4.00" | 275 | 125 | 0.50 lbs | FLX2582-0020 | FLX2584-0212 |
| 7896-150 | 1.50" | 1.82" | 6.00 | 4.00" | 250 | 125 | 0.50 lbs | FLX2582-0024 | FLX2584-0212 |
| 7896-175 | 1.75" | 2.07" | 6.00 | 4.00" | 225 | 125 | 0.50 lbs | FLX2582-0028 | FLX2584-0262 |
| 7896-200 | 2.00" | 2.32" | 6.00 | 4.00" | 200 | 100 | 0.50 lbs | FLX2582-0032 | FLX2584-0262 |
| 7896-225 | 2.25" | 2.57" | 6.00 | 4.00" | 175 | 100 | 1.00 lbs | FLX2582-0036 | FLX2584-0312 |
| 7896-250 | 2.50" | 2.82" | 6.50 | 4.00" | 150 | 100 | 1.00 lbs | FLX2582-0040 | FLX2584-0312 |
| 7896-275 | 2.75" | 3.07" | 7.00 | 4.00" | 125 | 100 | 1.00 lbs | FLX2582-0044 | FLX2584-0362 |
| 7896-300 | 3.00" | 3.32" | 7.50 | 4.00" | 100 | 100 | 1.50 lbs | FLX2582-0048 | FLX2584-0362 |
| 7896-350 | 3.50" | 3.82" | 8.50 | 4.00" | 75 | 100 | 2.00 lbs | FLX2582-0056 | FLX2584-0412 |
| 7896-400 | 4.00" | 4.32" | 9.50 | 4.00" | 50 | 100 | 2.50 lbs | FLX2582-0064 | FLX2584-0462 |
Specifications for reference only. Specific test data available on request.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
33
Tubing Construction:
Cover Construction:
Specifications and Approvals:
