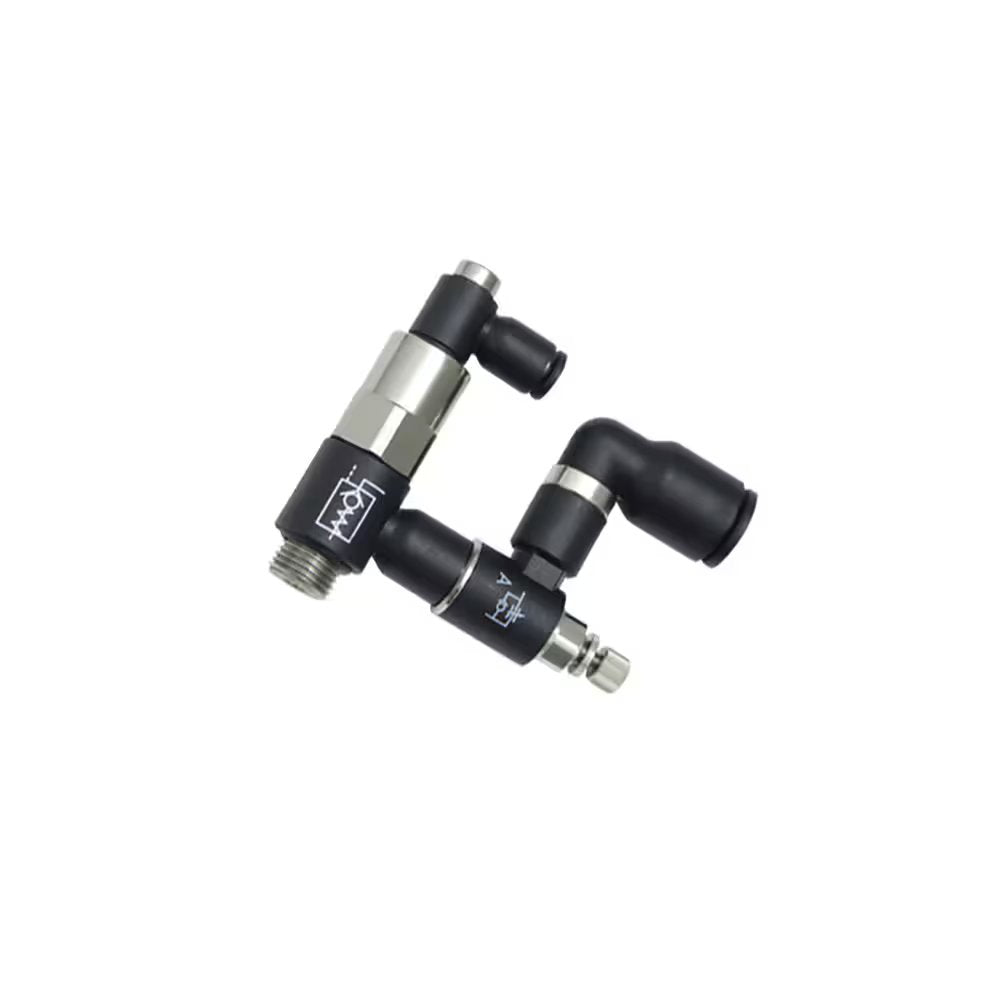

7894 10 21 by Parker | Legris Piloted Non-Return Valve with Flow Regulator Exhaust | 10 mm Tube Size x 1/2" Male BSPP Thread | 24 mm Hex (F1) | 17 mm Hex (F2) | 88 mm Length | Multi-Directional | Polymer

7894 10 21 by Parker | Legris Piloted Non-Return Valve with Flow Regulator Exhaust | 10 mm Tube Size x 1/2" Male BSPP Thread | 24 mm Hex (F1) | 17 mm Hex (F2) | 88 mm Length | Multi-Directional | Polymer

Sale price$253.42

by Parker Hannifin
Piloted Non-Return Valves:7894 Piloted Non-Return Valve with Flow Regulator Exhaust, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
5–14 $238.21
15–29 $215.41
30+ $190.07
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7894 Series
Shape:

Multi-Directional

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/2in Male BSPP
  • 4mm Push-to-Connect
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -5°C to +60°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Mounted in pairs on a cylinder
  • 3 functions in 1 compact product:
    - Piloted non-return valve
    - Flow control regulator
    - Manual exhaust
  • Vent saves time on restart after maintenance operations
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Nickel-plated brass
  • Venting buttons: Nickel-plated brass
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Piston: Nickel-plated brass
  • Valve poppet: Nickel-plated brass, technical polymer
  • Flow control regulator body: Technical polymer
  • Adjustment screw: Nickel-Plated Brass
  • Locking Nut: Nickel-Plated Brass
Part Number ØD C E F1 F2 G H H1 H2 H3 L L (Max) L1 Kg
7894 06 10 6 mm 1/8" 6 mm 13 mm 8 mm 14 mm 46 mm 7 mm 24 mm 31 mm 48.5 mm 51 mm 16 mm .041 Kg
7894 06 13 6 mm 1/4" 9 mm 17 mm 10 mm 18.5 mm 49 mm 11 mm 18 mm 31 mm 59.5 mm 65 mm 17 mm .067 Kg
7894 08 10 8 mm 1/8" 6 mm 13 mm 8 mm 14 mm 46 mm 7 mm 27 mm 31 mm 48.5 mm 51 mm 22 mm .051 Kg
7894 08 13 8 mm 1/4" 9 mm 17 mm 10 mm 18.5 mm 49 mm 11 mm 23 mm 31 mm 59.5 mm 65 mm 23 mm .068 Kg
7894 08 17 8 mm 3/8" 7 mm 20 mm 14 mm 22.5 mm 69 mm 13 mm 21 mm 40 mm 67.5 mm 73 mm 23 mm .060 Kg
7894 10 17 10 mm 3/8" 7 mm 20 mm 14 mm 22.5 mm 69 mm 13 mm 29 mm 40 mm 67.5 mm 73 mm 26 mm .061 Kg
7894 10 21 9 mm 1/2" 9 mm 24 mm 17 mm 28 mm 76 mm 12.5 mm 26 mm 47 mm 74 mm 81 mm 26 mm .234 Kg
7894 12 21 12 mm 1/2" 9 mm 24 mm 17 mm 28 mm 76 mm 12.5 mm 27 mm 47 mm 74 mm 81 mm 30 mm .237 Kg
