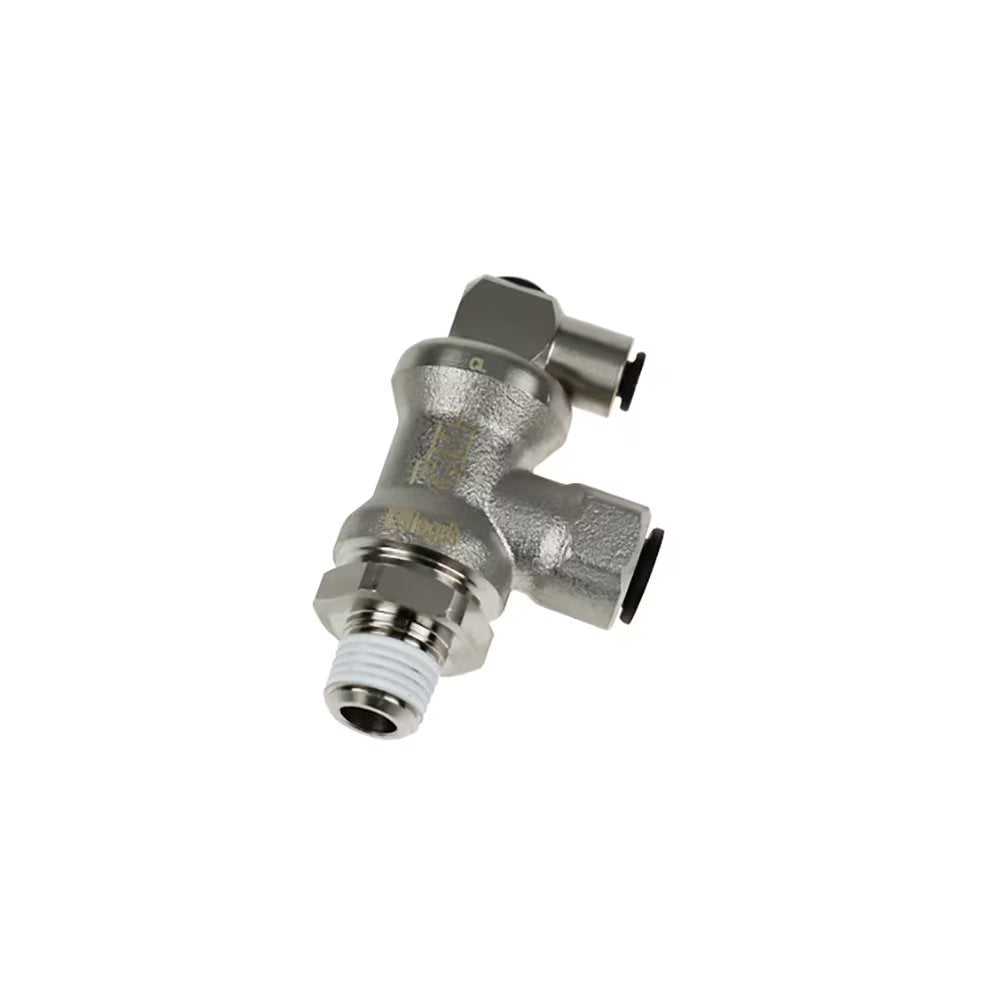

7885 12 21 by Parker | Legris Blocking Fitting | 12 mm Tube Size x 1/2" Male BSPT Thread | 24 mm Hex | Multi-Directional | Nickel-Plated Brass

7885 12 21 by Parker | Legris Blocking Fitting | 12 mm Tube Size x 1/2" Male BSPT Thread | 24 mm Hex | Multi-Directional | Nickel-Plated Brass

Sale price$437.10

by Parker Hannifin
Blocking Fitting:7885 Blocking Fitting, Male BSPT Thread
Buy More, Save More!
Quantity Price Each
5–14 $410.87
15–29 $371.54
30+ $327.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7885 Series
Shape:

Multi-Directional

Ends Configuration:
  • 12mm Push-to-Connect
  • 1/2in Male BSPT
  • 4mm Push-to-Connect
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -20°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
  • Mounted in pairs on a cylinder
  • Compact size to fit into any configuration
  • Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973)
  • Can be rotated 360° during assembly
  • Spark resistance, for welding applications
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d >110 millions of cycles
Component Materials:
  • Body: Nickel-plated brass
  • Release buttons: Polymer
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Adapter: Nickel-plated brass
  • Silicone-free
Part Number ØD C F G H H1 H2 J L Kg
7885 06 10 6 mm 1/8" 21 mm 24 mm 51.5 mm 25 mm 20 mm 17 mm 28 mm .127 Kg
7885 06 13 6 mm 1/4" 21 mm 24 mm 51.5 mm 25 mm 20 mm 17 mm 28 mm .131 Kg
7885 08 13 8 mm 1/4" 21 mm 24 mm 51.5 mm 25 mm 20 mm 17 mm 28 mm .126 Kg
7885 08 17 8 mm 3/8" 21 mm 24 mm 51.5 mm 25 mm 20 mm 17 mm 28 mm .131 Kg
7885 10 17 10 mm 3/8" 24 mm 28 mm 57 mm 25 mm 24 mm 27 mm 35 mm .217 Kg
7885 12 21 12 mm 1/2" 24 mm 28 mm 57 mm 25 mm 24 mm 27 mm 37.5 mm .229 Kg

Pre-coated thread
