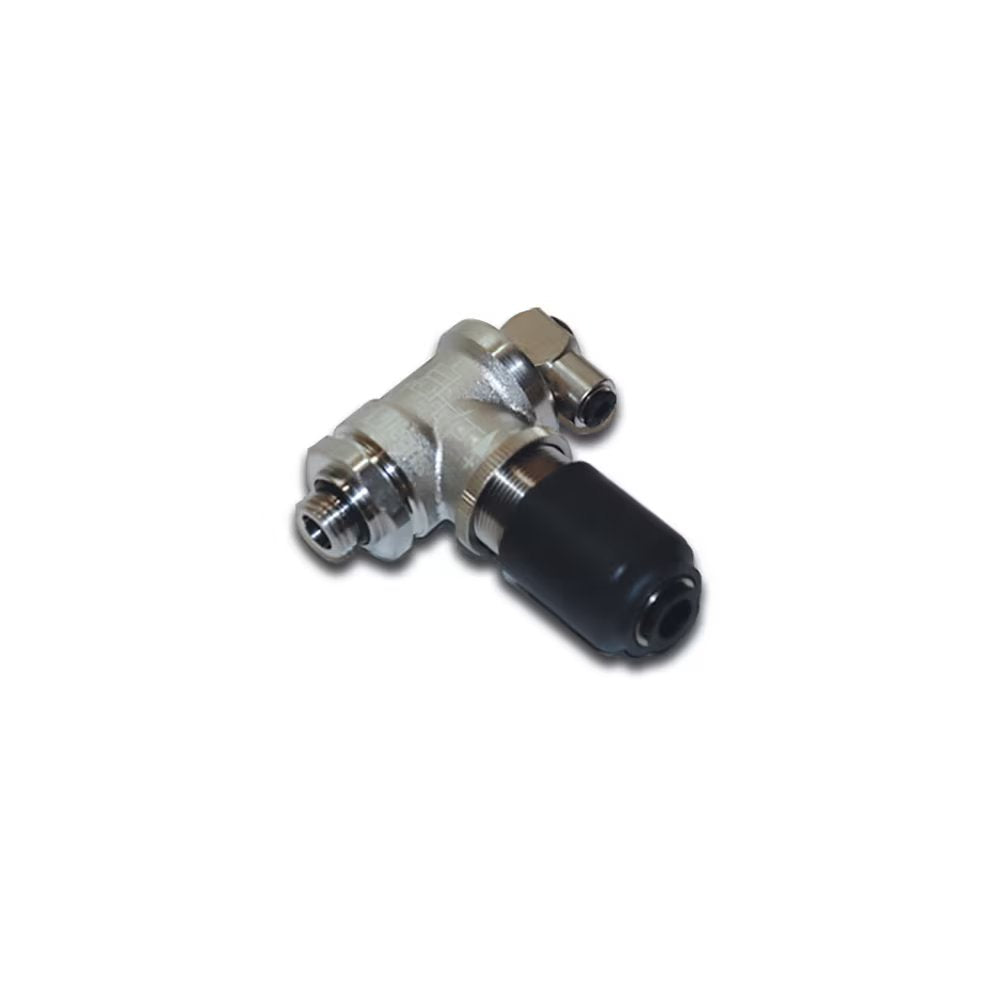

7883 06 10 by Parker | Legris Blocker/Flow Regulator | 6 mm Tube Size x 1/8" Male BSPP Thread | 64 mm Length | Multi-Directional | Nickel-Plated Brass

7883 06 10 by Parker | Legris Blocker/Flow Regulator | 6 mm Tube Size x 1/8" Male BSPP Thread | 64 mm Length | Multi-Directional | Nickel-Plated Brass

Sale price$197.52

by Parker Hannifin
Blocking Fitting:7883 Blocker/Flow Regulator, Exhaust, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $185.67
30–59 $167.89
60+ $148.14
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7883 Series
Shape:

Multi-Directional

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/8in Male BSPP
  • 4mm Push-to-Connect
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -20°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
  • Mounted in pairs on a cylinder
  • Compact size to fit into any configuration
  • Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973)
  • Can be rotated 360° during assembly
  • Spark resistance, for welding applications
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d >110 millions of cycles
Component Materials:
  • Body: Nickel-plated brass
  • Release buttons: Polymer
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Adapter: Nickel-plated brass
  • Silicone-free
Part Number ØD C G H H1 L L (Max) L1 Kg
7883 04 10 4 mm 1/8" 21.5 mm 53 mm 21 mm 46.5 mm 52 mm 12 mm .166
7883 06 10 6 mm 1/8" 21.5 mm 53 mm 21 mm 46.5 mm 52 mm 12 mm .163
7883 06 13 6 mm 1/8" 21.5 mm 53 mm 21 mm 46.5 mm 52 mm 12 mm .166
7883 08 13 8 mm 1/4" 27 mm 57.5 mm 24.5 mm 54 mm 60 mm 14 mm .252
7883 08 17 8 mm 3/8" 27 mm 57.5 mm 24.5 mm 54 mm 60 mm 14 mm .254

Combination of blocking and flow regulation functions Working temperature: 0 to 70°C
