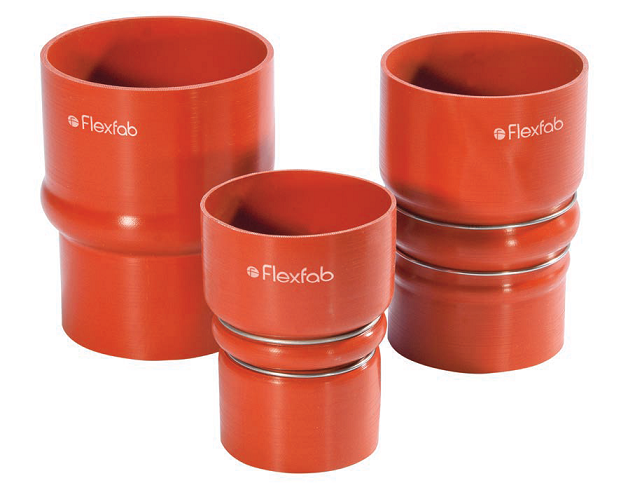

7868 by FlexFab | 4-ply Charge Air Connector (CAC) Convoluted Reducer | 2.50"/3.00" ID | 2.73"/3.23" OD | Red | 4" Overall Length
Buy more, save moreDiscounts applied in cart/checkout.
Charge Air Connectors
Charge Air Connector Convoluted Reducers
4-ply meta-aramid convoluted reducers that join two pipe sizes on either the hot or cold side of the charge air cooler (CAC) system.
1
What are these reducers used for?
- Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
- Can be used on both the hot side and cold side of the CAC system
2
What are the key specifications?
Construction
4-ply silicone-coated meta-aramid fabric, with stainless steel pressure retention rings where noted
Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Wall Thickness
.092" / .132"
Use
Hot side or cold side
3
Which sizes are available?
| Part Number | Inside Diameter (Small / Large) | Outside Diameter (Small / Large) | Overall Length | Convolutes (Humps) | Stainless Steel Rings | Max. Operating Pressure | Weight | T-Bolt Clamp (Small / Large End) | Constant Tension Clamp (Small / Large End) |
|---|---|---|---|---|---|---|---|---|---|
| 7868 | 2.50"/3.00" | 2.73"/3.23" | 4.00" | 1 | None | 40 PSI | 0.5 lbs | FLX2583-0250 / FLX2583-0300 | FLX2584-0312 / FLX2584-0362 |
| 7726 | 3.00"/3.50" | 3.23"/3.73" | 5.00" | 1 | 2 | 55 PSI | 0.5 lbs | FLX2583-0300 / FLX2583-0350 | FLX2584-0362 / FLX2584-0412 |
| 7766 | 3.00"/4.00" | 3.23"/4.23" | 6.30" | 1 | 2 | 50 PSI | 0.5 lbs | FLX2583-0300 / FLX2583-0400 | FLX2584-0362 / FLX2584-0462 |
| 7880 | 3.50"/4.00" | 3.73"/4.23" | 6.00" | 2 | 2 | 50 PSI | 0.5 lbs | FLX2583-0350 / FLX2583-0400 | FLX2584-0412 / FLX2584-0462 |
| 7711 | 4.00"/4.50" | 4.23"/4.73" | 6.00" | 1 | None | 30 PSI | 0.5 lbs | FLX2583-0400 / FLX2583-0450 | FLX2584-0462 / FLX2584-0512 |
| 7866 | 4.00"/4.50" | 4.23"/4.73" | 7.00" | 2 | 3 | 45 PSI | 0.6 lbs | FLX2583-0400 / FLX2583-0450 | FLX2584-0462 / FLX2584-0512 |
Specifications for reference only. Specific test data available on request.
Additional Product Data:
Shape:
Straight
Material(s):
