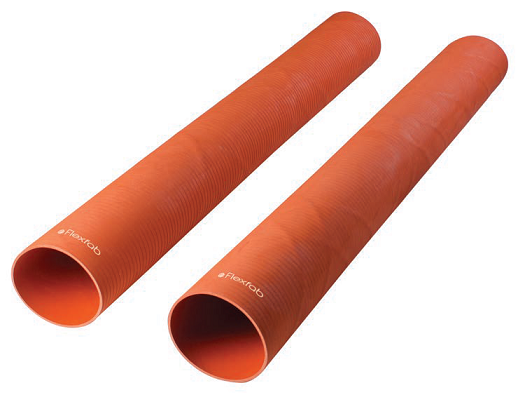

7851-300 by FlexFab | Series 7851 | 4-ply Meta-Aramid Reinforced Turbo Sleeve | 3.00" ID | 3.23" OD | 3ft Length
Package Quantity: 3 FT
Buy more, save moreDiscounts applied in cart/checkout.
Turbo Sleeves
Series 7851 4-Ply Meta-Aramid Reinforced Turbo Sleeves
Silicone turbo sleeves with 4 plies of silicone-coated meta-aramid fabric reinforcement, rated to +500°F.
1
What are these sleeves used for?
- Connection between the turbocharger and the engine
- Resists chemicals, steam, ozone, coolants and aging conditions normally found in the engine environment
2
What are the key specifications?
Construction
4-ply silicone-coated meta-aramid fabric reinforcement
Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Wall Thickness
.090" / .135"
Length
3 ft
3
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Burst Pressure | Max. Operating Pressure | Weight | Lined Worm Gear Clamp | T-Bolt Clamp | Constant Tension Clamp |
|---|---|---|---|---|---|---|---|---|
| 7851-100 | 1.00" | 1.23" | 135 PSI | 45 PSI | 0.50 lbs/ft | FLX2582-0012 | — | — |
| 7851-150 | 1.50" | 1.73" | 120 PSI | 40 PSI | 0.60 lbs/ft | — | FLX2583-0150 | FLX2584-0212 |
| 7851-200 | 2.00" | 2.23" | 105 PSI | 35 PSI | 0.70 lbs/ft | — | FLX2583-0200 | FLX2584-0262 |
| 7851-250 | 2.50" | 2.73" | 90 PSI | 30 PSI | 0.80 lbs/ft | — | FLX2583-0250 | FLX2584-0312 |
| 7851-300 | 3.00" | 3.23" | 75 PSI | 25 PSI | 0.90 lbs/ft | — | FLX2583-0300 | FLX2584-0362 |
| 7851-350 | 3.50" | 3.73" | 60 PSI | 20 PSI | 1.00 lbs/ft | — | FLX2583-0350 | FLX2584-0412 |
| 7851-400 | 4.00" | 4.23" | 45 PSI | 15 PSI | 1.10 lbs/ft | — | FLX2583-0400 | FLX2584-0462 |
| 7851-500 | 5.00" | 5.23" | 30 PSI | 10 PSI | 1.20 lbs/ft | — | FLX2583-0500 | FLX2584-0562 |
Specifications for reference only. Specific test data available on request.
How is this product sold?
Sold in 3 ft lengths.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
25
Tubing Construction:
Cover Construction:
