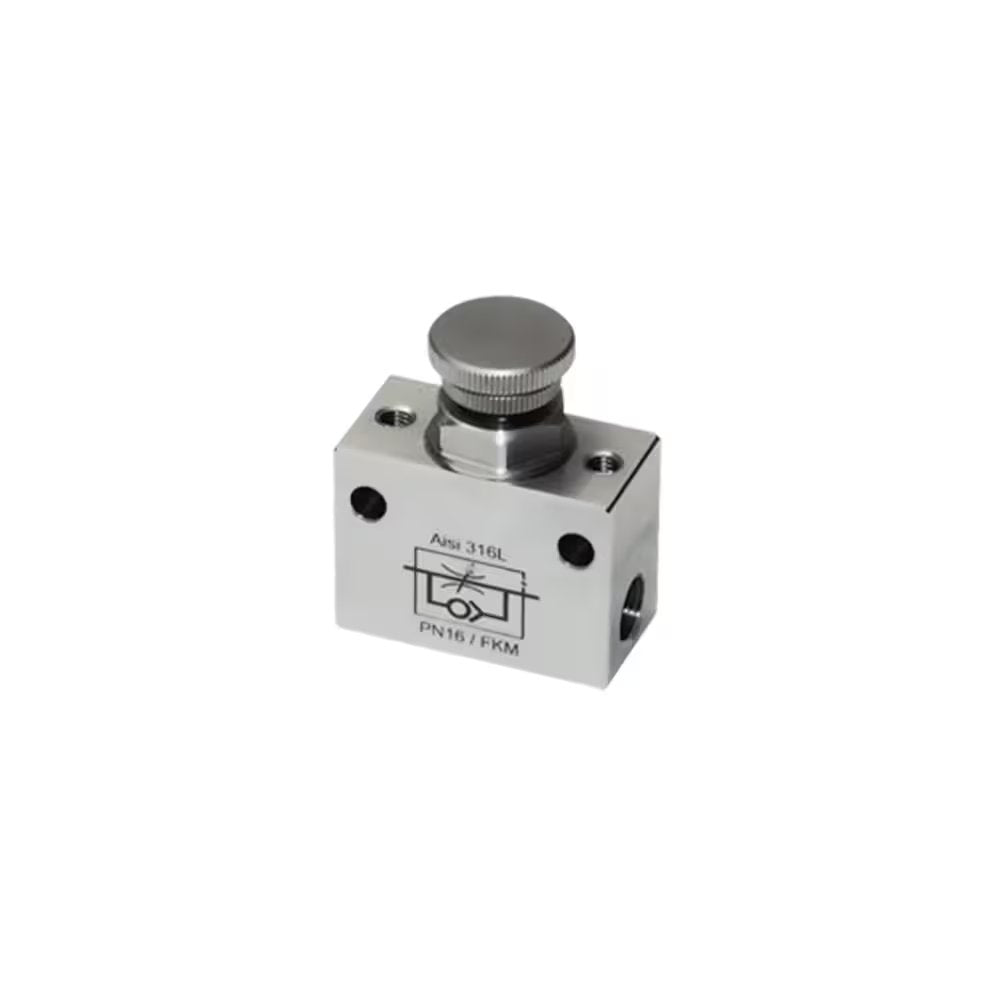

7820 00 13 by Parker | Legris In-Line One-Way Flow Regulator | 1/4" Female BSPP Thread | Straight | 316L Stainless Steel

7820 00 13 by Parker | Legris In-Line One-Way Flow Regulator | 1/4" Female BSPP Thread | Straight | 316L Stainless Steel

Sale price$312.16

by Parker Hannifin
Metal Flow Control Regulators / Stainless Steel:7820 In-Line One-Way Flow Regulator, Female BSPP Thread
Buy More, Save More!
Quantity Price Each
5–14 $293.43
15–29 $265.34
30+ $234.12
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7820 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
    7822: all compatible fluids depending on whether FKM or PTFE seals are used
  • Working Pressure:
    7810-7812: 1 to 10 bar
    7820: 1 to 16 bar
    7822: 1 to 40 bar
  • Working Temperature:
    7810-7812: 0°C to +70°C
    7820-7822: -15°C to +120°C
Advantages:
  • Compatibility with aggressive, mechanical and chemical environments
      • For food process applications:
  • Guarantees the integrity of the fluids conveyed
  • Easy-to-clean
Regulations:
  • RoHS
  • REACH
  • PED
  • FDA: 21 CFR
  • 1935/2004
Component Materials:
  • Body: 316L Stainless Steel
  • Adjustment screw: 316L Stainless Steel
  • Seals: FKM
Part Number Diameter Nominal (DN) C H (Max) H (Min) H1 K L L1 N ØT Kg
7820 00 10 7 mm 1/8" 52.5 mm 47 mm 30 mm 20 mm 40 mm 20 mm 30 mm 20 mm .174 Kg
7820 00 13 7 mm 1/8" 52.5 mm 47 mm 30 mm 20 mm 40 mm 20 mm 30 mm 20 mm .164 Kg
