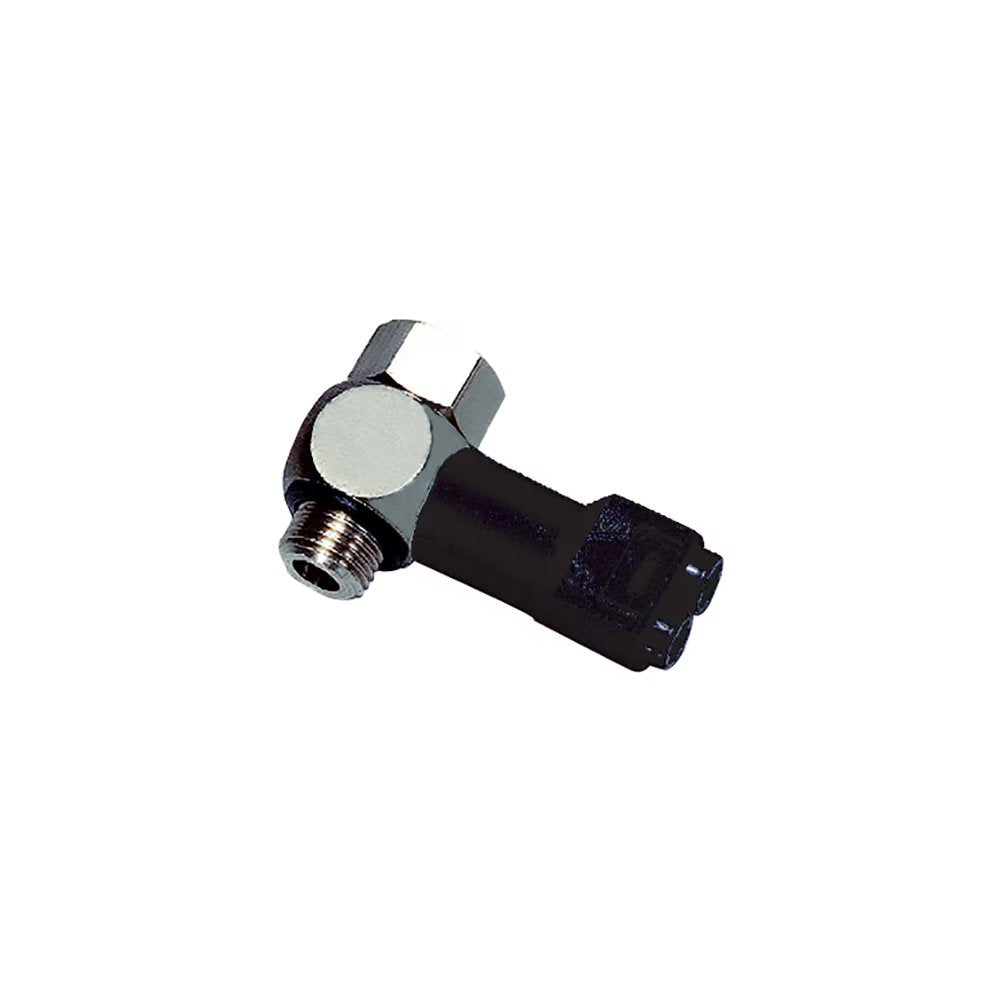

7818 19 13 by Parker | Legris Pneumatic Sensor Fitting | 1/4" Male/Female BSPP Thread | 17 mm Hex | 52.5 mm Length | Straight | Polymer

7818 19 13 by Parker | Legris Pneumatic Sensor Fitting | 1/4" Male/Female BSPP Thread | 17 mm Hex | 52.5 mm Length | Straight | Polymer

Sale price$76.53

by Parker Hannifin
Sensor Fittings:7818 Pneumatic Sensor, Male/Female BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $71.94
30–59 $65.05
60+ $57.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7818 Series
Shape:

Straight

Material(s):
  • Zamak
  • Polymer
  • Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 3 to 8 bar
  • Working Temperature: -15°C to +60°C
  • Back Pressure: -15°C to +60°C
  • Switching Time: -15°C to +60°C
  • Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:
  • Lockable adjustment possible of the setpoint
  • Output pressure adjustment options marked on the screw
  • Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit
  • Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Screw: Brass
  • Seal: NBR
Part Number C F H J L L1 Kg
7818 19 10 1/8" 14 mm 23 mm 16 mm 40.5 mm 8 mm .049 Kg
7818 19 13 1/4" 17 mm 28 mm 19.5 mm 42.5 mm 10 mm .065 Kg
