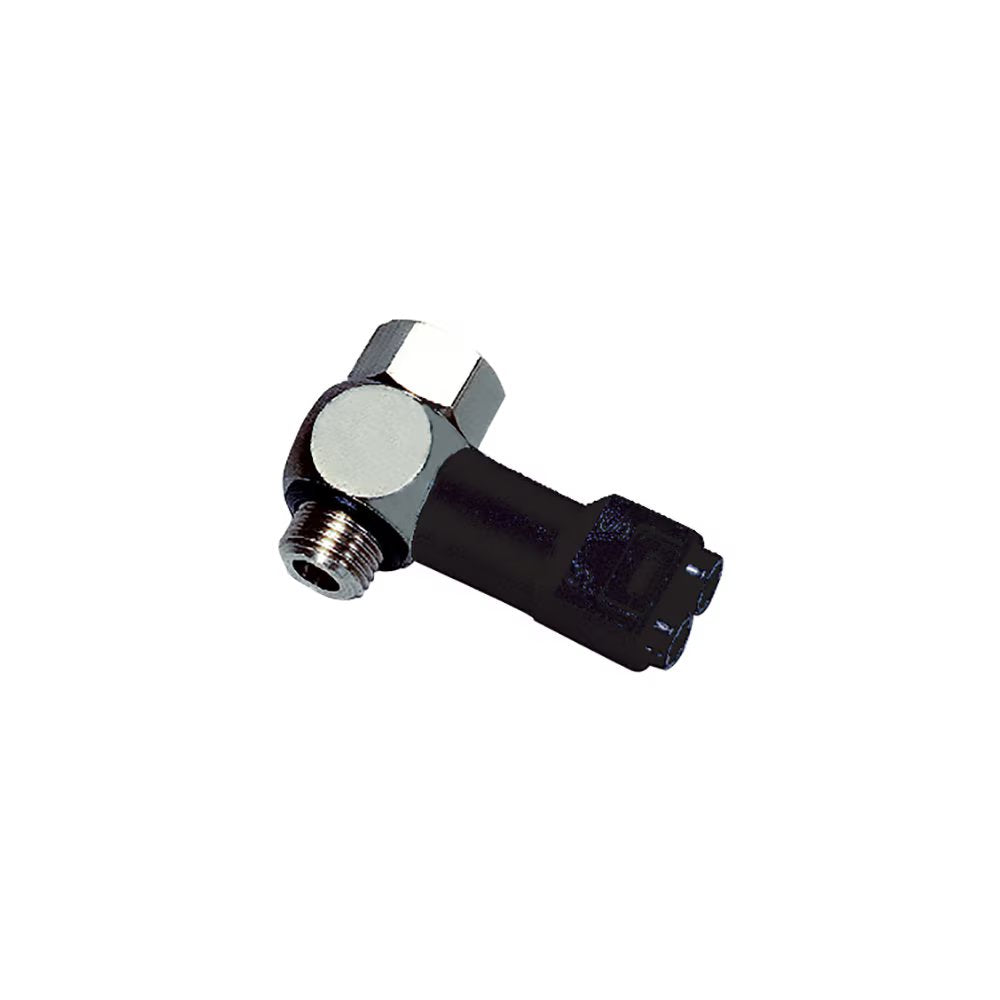

7818 04 17 by Parker | Legris Pneumatic Sensor Fitting | 4 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 61 mm Length | Straight | Polymer

7818 04 17 by Parker | Legris Pneumatic Sensor Fitting | 4 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 61 mm Length | Straight | Polymer

Sale price$79.78

by Parker Hannifin
Sensor Fittings:7818 Pneumatic Sensor Fitting, Male BSPP and Metric Thread
Buy More, Save More!
Quantity Price Each
20–29 $74.99
30–59 $67.81
60+ $59.84
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7818 Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 3/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 3 to 8 bar
  • Working Temperature: -15°C to +60°C
  • Back Pressure: -15°C to +60°C
  • Switching Time: -15°C to +60°C
  • Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:
  • Lockable adjustment possible of the setpoint
  • Output pressure adjustment options marked on the screw
  • Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit
  • Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Screw: Brass
  • Seal: NBR
Part Number ØD C F H J L L1 Kg
7818 04 19* 4 mm M5x0.8 8 mm 16 mm 11 mm 43.5 mm 5.5 mm .025 Kg
7818 04 10 4 mm 1/8" 14 mm 23 mm 16 mm 44.5 mm 8 mm .025 Kg
7818 04 13 4 mm 1/4" 17 mm 28 mm 19.5 mm 46.5 mm 10 mm .025 Kg
7818 04 17 4 mm 3/8" 22 mm 29 mm 23.5 mm 49 mm 12 mm .083 Kg
7818 04 21 4 mm 1/2" 27 mm 30 mm 31.5 mm 52.5 mm 16 mm .125 Kg

* Bolt zinc passivated steel
