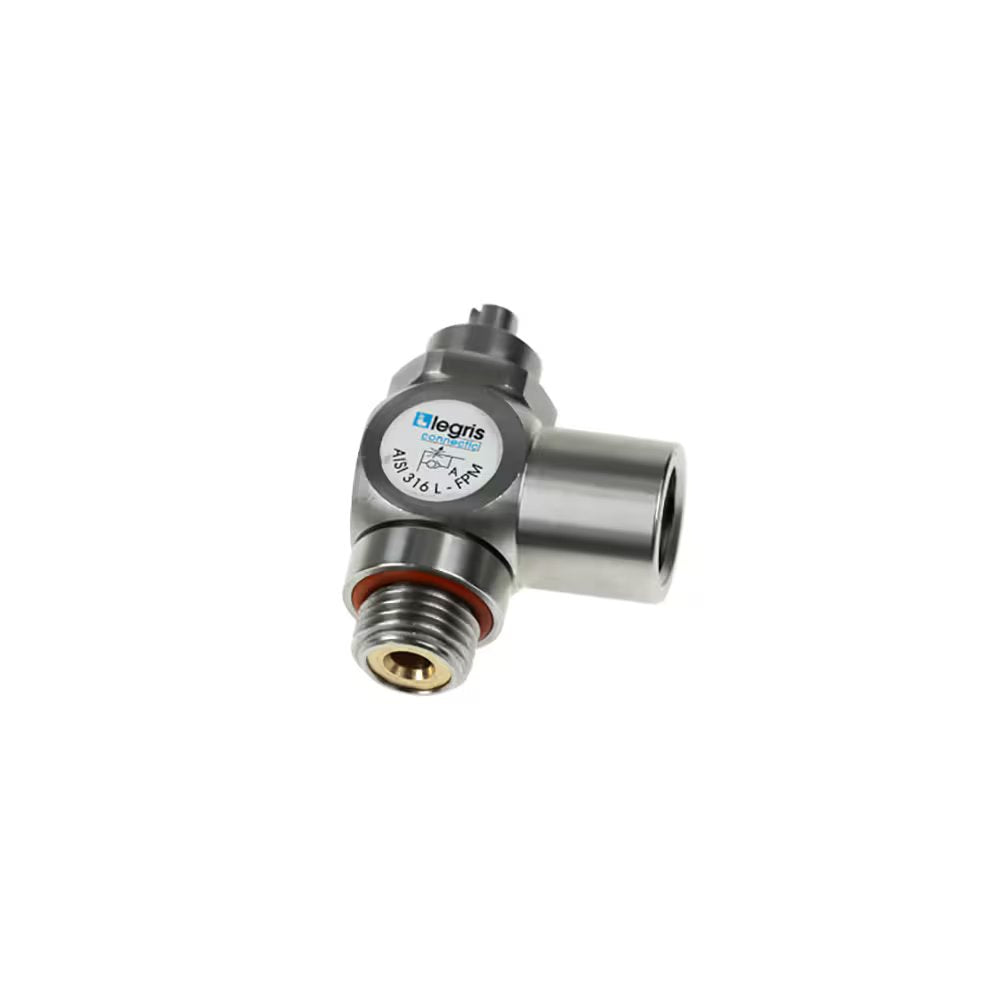

7815 11 11 by Parker | Threaded Port Knobless Meter Out Flow Control | 1/8" Male NPT Thread x 1/8" Female NPT Thread | 1.70" Length | 90° Elbow | Stainless Steel

7815 11 11 by Parker | Threaded Port Knobless Meter Out Flow Control | 1/8" Male NPT Thread x 1/8" Female NPT Thread | 1.70" Length | 90° Elbow | Stainless Steel

Sale price$125.43

by Parker Hannifin
Stainless Steel Flow Controls:7810, 7812, 7815, 7817 Threaded Port Knobless Stainless Steel Flow Control - NPT, UNF
Buy More, Save More!
Quantity Price Each
20–29 $117.90
30–59 $106.62
60+ $94.07
Discounts applied in cart/checkout.

Product Data:

Shape:

90° Elbow

Ends Configuration:
  • 1/8in Male NPT
  • 1/8in Female NPT
Material(s):
  • Stainless Steel
Product Features:
  • Suitable for corrosive environments
  • Excellent mechanical and chemical resistance
  • 100% leak tested in production
  • Smooth external surfaces to facilitate cleaning
  • Suitable for food applications
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
  • Semi-Conductors
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Polyethylene
  • 95FR
  • Polyurethane 95 Durometer Shore A
  • Semi-rigid Nylon
  • FEP Fluoropolymer
Part No. Meter Out C E E1 F H J L WT. OZ.
7815 11 11 G1/8" .20" .31" 13 mm 1.50" .59" .67" 1.23"
7815 18 18 G3/8" .28" .55" 20 mm 1.89" .87" 1.06" 2.08"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
