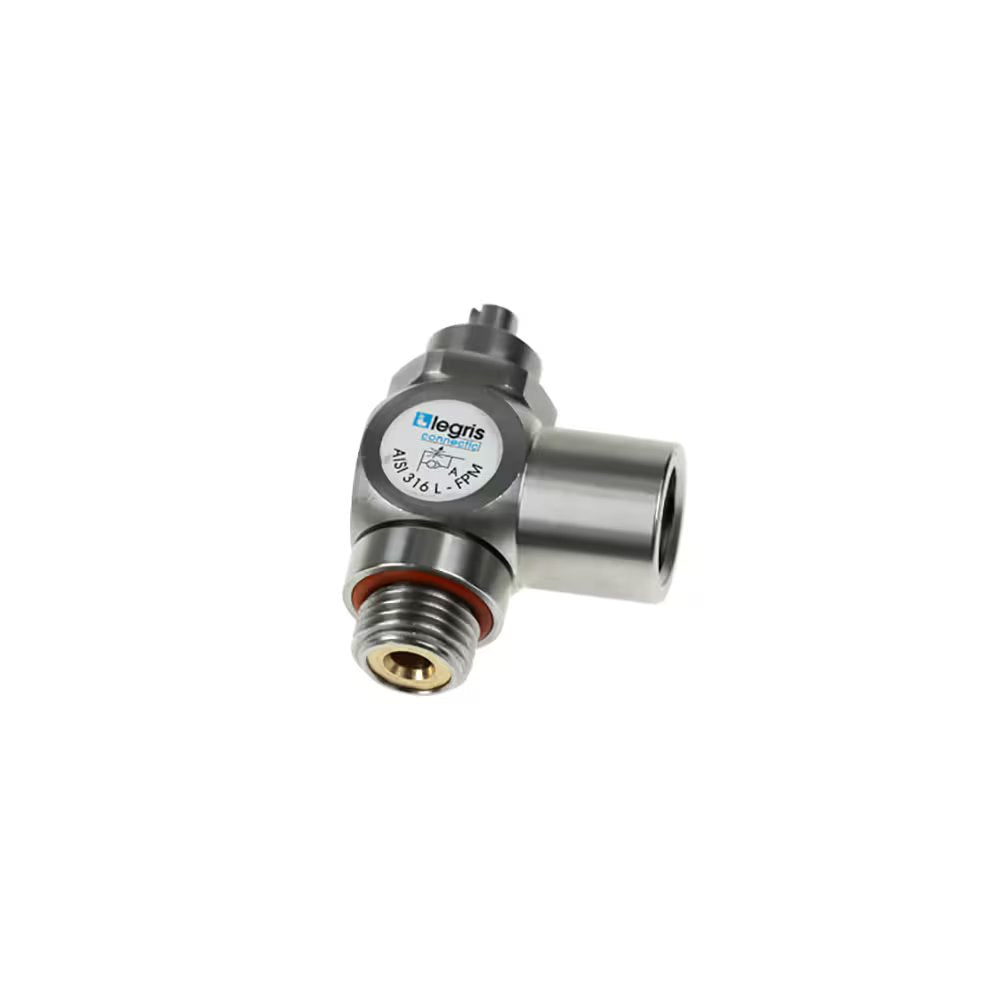

7810 10 10 by Parker | Legris Threaded Port Knobless Meter Out Flow Control | G1/8" Male BSPP Thread x G1/8" Female BSPP Thread | 1.69" Length | 90° Elbow | Stainless Steel | Pack of 2

7810 10 10 by Parker | Legris Threaded Port Knobless Meter Out Flow Control | G1/8" Male BSPP Thread x G1/8" Female BSPP Thread | 1.69" Length | 90° Elbow | Stainless Steel | Pack of 2

Sale price$250.54

by Parker Hannifin
Stainless Steel Flow Controls:7810, 7812, Threaded Port Knobless Stainless Steel Flow Control - BSPP Metric

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $235.51
15–29 $212.96
30+ $187.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7810 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/8in Male BSPP
  • 1/8in Female BSPP
Product Features:
  • Suitable for corrosive environments
  • Excellent mechanical and chemical resistance
  • 100% leak tested in production
  • Smooth external surfaces to facilitate cleaning
  • Suitable for food applications
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
  • Semi-Conductors
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Polyethylene
  • 95FR
  • Polyurethane 95 Durometer Shore A
  • Semi-rigid Nylon
  • FEP Fluoropolymer
Part No. Meter Out Part No. Bi-Directional C E E1 F H J L WT. KG.
7810 19 19 7812 19 19 M5X0.8 4 mm 4 mm 8 mm 24 mm 10 mm 11 mm .027
7810 10 10 7812 10 10 G1/8" 5 mm 8 mm 13 mm 38 mm 15 mm 17 mm .035
7810 13 13 7812 13 13 G1/4" 8 mm 12 mm 17 mm 40 mm 18 mm 24 mm .048
7810 17 17 7812 17 17 G3/8" 7 mm 12 mm 20 mm 53 mm 22 mm 24 mm .059
7810 21 21 7812 21 21 G1/2" 8 mm 15 mm 23 mm 69 mm 28 mm 31 mm .076
